Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

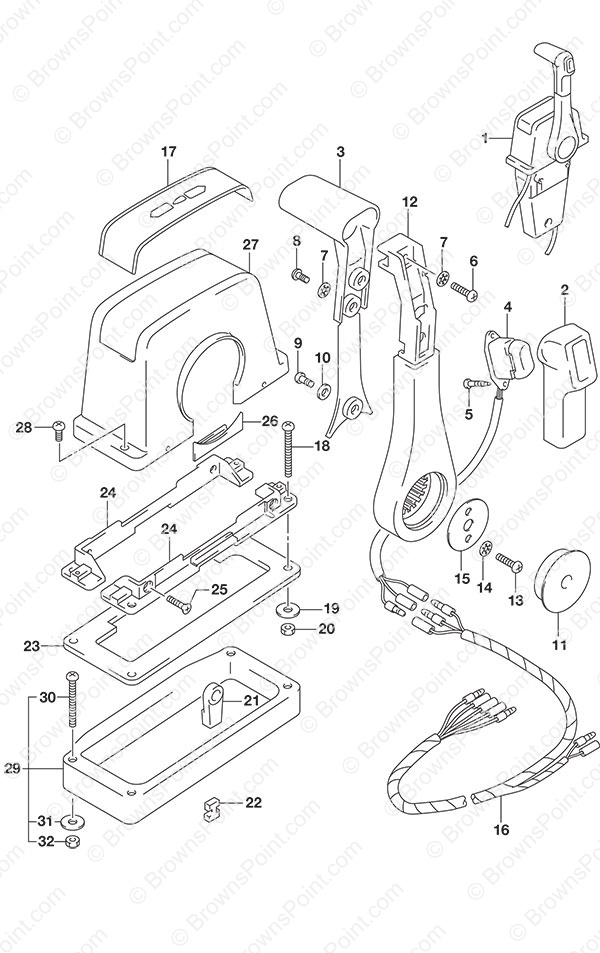

Fig. 544 - Opt: Top Mount Single (1)

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 67200-88L02 Single Binnacle Control Box 1 $ 435.72
Push
2 67261-93J00 Grip No 1 1 $ 12.55
3 67263-93J00 Grip No 2 1 $ 17.97
4 37850-93J10 PTT Switch Assembly 1 $ 110.29
5 67295-92E10 Screw (3x12) 2 $ 2.49
6 67296-88D10 Screw (5x16) 1 $ 2.44
7 67288-92E20 Washer 3 $ 2.49
8 67295-92E00 Screw 2 $ 2.49
9 67296-92E70 Screw 1 $ 2.32
10 67288-92E40 Washer 1 $ 2.49
11 67257-92E00 Lever Cap 1 $ 9.34
12 67251-93J00 Handle Lever 1 $ 118.36
13 67296-92E60 Screw 2 $ 3.13
14 67288-92E30 Washer 2 $ 2.49

Not Available

15 67253-92E00 Washer 1 $ 5.38
16 36890-93J00 Wire Harness 1 $ 76.27
17 67281-93J00 Decal 1 $ 12.13
18 67296-92E30 Screw 4 $ 3.13
19 09160-05024 Washer (5.5x16x1.5) 4 $ 1.54
20 67287-92E00 Nut 4 $ 2.40
21 67275-95600 Cable End 2 $ 8.02
22 67273-95600 Spacer 1 $ 3.88
23 67273-92E00 Grommet 1 $ 14.81
24 67274-92E00 Flange 2 $ 34.99
25 67296-95610 Screw 4 $ 2.85
26 67271-92E00 Cover 1 $ 7.59
27 67211-93J00 Top Binnacle Cover 1 $ 51.06
28 67296-92E70 Screw 2 $ 2.32
29 67500-93J00 Single Binnacle Box Spacer 1 $ 18.18
30 09125-05135 Screw (5x65) 4 $ 3.24
31 09160-05029 Washer (5.5x10x0.8) 4 $ 1.70
32 09140-05005 Nut 4 $ 2.65

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
