Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

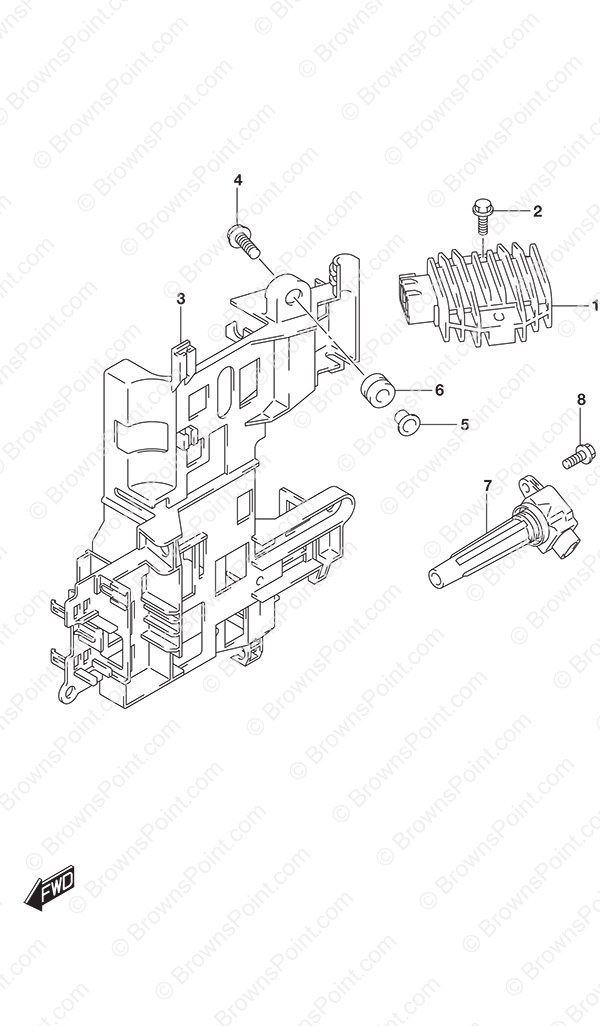

Fig. 310 - Rectifier/Ignition Coil

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 32800-88L01 Rectifier/Regulator Assembly 1 $ 159.97
2 01550-06257 BOLT 2 $ 2.33
3 32890-88L01 Electric Parts Holder 1 $ 29.18
4 09116-06202 Bolt w/Washer (6x25) 3 $ 3.54
5 09169-06062 Washer (6.3x17x1.6) 3 $ 2.52
6 09320-09016 Cushion 3 $ 1.97
7 33410-87L00 Ignition Coil Assembly 3 $ 139.04
8 01547-06207 BOLT 6 X 20 3 $ 2.04

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
