Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

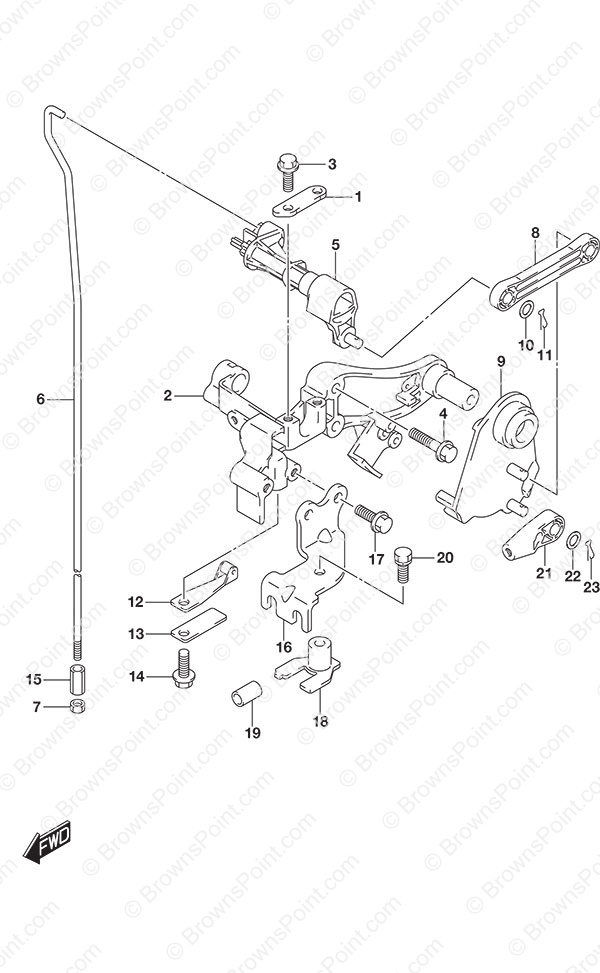

Fig. 204 - Clutch Shaft

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 21126-88L00 Clutch Shaft Holder 1 $ 4.95
2 21151-88L00 Clutch Lever Holder 1 $ 63.78
3 01550-06167 BOLT 2 $ 2.33
4 01550-06307 BOLT 2 $ 2.74
5 21210-88L01 Clutch Shaft 1 $ 17.47
6 23111-88L11 Clutch Rod (L/X) 1 $ 17.51
7 29141-93J00 Nut (6mm) 1 $ 1.80
8 23115-88L00 Clutch Lever Link 1 $ 6.91
9 23210-88L00 Clutch Control Lever 1 $ 23.61
10 09160-06055 Washer (7x12x1.0) 2 $ 1.70
11 09385-06012 Clip 2 $ 1.91
12 23213-89J01 Notch Plate Spring No. 1 1 $ 7.47

Not Available

13 23214-89J00 Notch Plate Spring No. 2 (NLA) 1 $ 1.85

Not Available

14 01550-08127 BOLT 8 X 12 1 $ 2.84
15 23311-95J00 Clutch Rod Connector 1 $ 7.09
16 67341-88L01 Remocon Cable Holder 1 $ 15.72
17 01550-06167 BOLT 2 $ 2.33
18 67343-88L01 Remocon Cable Stopper 1 $ 34.76
19 09352-70104-600 Hose (7x10.2x600) 2 $ 5.72
L:600->14
20 01570-06167 BOLT 1 $ 2.62
21 67467-89J01 Cable Connector 2 $ 7.75
22 09160-06055 Washer (7x12x1.0) 2 $ 1.70
23 09385-06012 Clip 2 $ 1.91

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
