Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-371001 to 14001F-98XXXX
S/N 14001Z-371001 to 14001Z-98XXXX

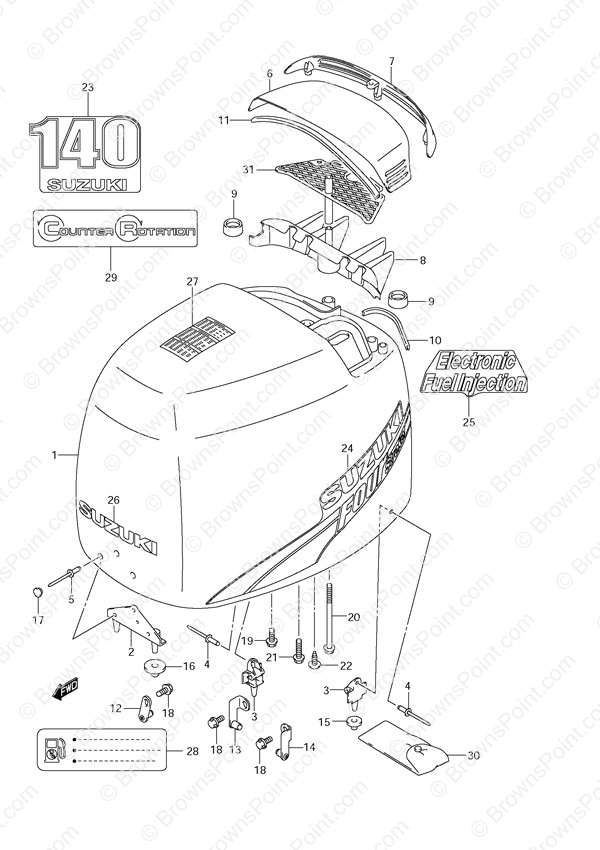

Fig. 48 - Engine Cover 2003 to 2009
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61410-92846-0EP 61410-92847-0EP
SKU: 61410-92846-0EP Weight: 0.000000 Brand: Price: $ 1,034.18 |
61410-92847-0EP | 1 | $ 1,034.18 | ||
| 2 | 61621-87D02 Front Fastener Bracket
SKU: 61621-87D02 Weight: 0.250000 Brand: Price: $ 47.37 |
Front Fastener Bracket | 1 | $ 47.37 | ||
| 3 | 61644-90J00 Rear Fastener Bracket
SKU: 61644-90J00 Weight: 0.120000 Brand: Price: $ 34.66 |
Rear Fastener Bracket | 2 | $ 34.66 | ||
| 4-1 | 09229-04028-XC0 Rivet
SKU: 09229-04028-XC0 Weight: 0.060000 Brand: Price: $ 3.03 |
Rivet | 4 | $ 3.03 | ||
| 4-2 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.97 |
Rivet | 4 | $ 2.97 | 2005 to 2009 | |
| 5 | 09229-04046 Rivet
SKU: 09229-04046 Weight: 0.062500 Brand: Price: $ 3.00 |
Rivet | 3 | $ 3.00 | ||
| 6-1 | 61431-92J02-0EP Tilt Up Handle
SKU: 61431-92J02-0EP Weight: 22.000000 Brand: Price: $ 253.97 |
Tilt Up Handle | 1 | $ 253.97 | ||
| 6-2 | 61431-92J02-0EP Tilt Up Handle
SKU: 61431-92J02-0EP Weight: 22.000000 Brand: Price: $ 253.97 |
Tilt Up Handle | 1 | $ 253.97 | 2008 to 2009 | |
| 7 | 61432-92J00 Tilt Up Louver
SKU: 61432-92J00 Weight: 1.000000 Brand: Price: $ 51.81 |
Tilt Up Louver | 1 | $ 51.81 | ||
| 8 | 61433-92J00 Air Intake Inner Cover
SKU: 61433-92J00 Weight: 0.500000 Brand: Price: $ 48.31 |
Air Intake Inner Cover | 1 | $ 48.31 | ||
| 9 | 61438-92J00 Air Intake Inner Cushion (NLA)
SKU: 61438-92J00 Weight: 0.060000 Brand: Price: $ 5.20 |
Air Intake Inner Cushion (NLA) | 2 | $ 5.20 | ||
| 10 | 61439-90J01 Tilt Up Handle Seal
SKU: 61439-90J01 Weight: 0.060000 Brand: Price: $ 5.42 |
Tilt Up Handle Seal | 1 | $ 5.42 | ||
| 11 | 61439-92J01 Tilt Up Handle Seal
SKU: 61439-92J01 Weight: 0.250000 Brand: Price: $ 42.29 |
Tilt Up Handle Seal | 1 | $ 42.29 | ||
| 12 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.67 |
FASTENER COMP | 1 | $ 12.67 | ||
| 13 | 61680-90J01 Starboard Rear Fastener
SKU: 61680-90J01 Weight: 0.080000 Brand: Price: $ 18.03 |
Starboard Rear Fastener | 1 | $ 18.03 | ||
| 14 | 61690-90J01 Port Rear Fastener
SKU: 61690-90J01 Weight: 0.080000 Brand: Price: $ 18.03 |
Port Rear Fastener | 1 | $ 18.03 | ||
| 15 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.27 |
Cushion | 2 | $ 4.27 | ||
| 16 | 09329-10025 Cushion
SKU: 09329-10025 Weight: 0.060000 Brand: Price: $ 3.50 |
Cushion | 2 | $ 3.50 | ||
| 17 | 09250-12015 CAP(OD:12.3)
SKU: 09250-12015 Weight: 0.000000 Brand: Price: $ 2.02 |
CAP(OD:12.3) | 3 | $ 2.02 | ||
| 18 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.70 |
BOLT | 3 | $ 2.70 | ||
| 19 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 4 | $ 2.45 | ||
| 20 | 01550-06957 BOLT
SKU: 01550-06957 Weight: 0.060000 Brand: Price: $ 4.02 |
BOLT | 1 | $ 4.02 | ||
| 21 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 3 | $ 2.45 | ||
| 22 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.23 |
SCREW | 3 | $ 2.23 | ||
| 23 | 61435-92J11 Rear Emblem Mark
SKU: 61435-92J11 Weight: 0.060000 Brand: Price: $ 18.00 |
Rear Emblem Mark | 1 | $ 18.00 | ||
| 24-1 | 61443-90J11 Starboard Engine Cover Stripe
SKU: 61443-90J11 Weight: 0.200000 Brand: Price: $ 75.98 |
Starboard Engine Cover Stripe | 1 | $ 75.98 | ||
| 24-2 | 61453-90J11 Port Engine Cover Stripe
SKU: 61453-90J11 Weight: 0.200000 Brand: Price: $ 75.98 |
Port Engine Cover Stripe | 1 | $ 75.98 | ||
| 25 | 61446-87J01 EFI Decal
SKU: 61446-87J01 Weight: 0.060000 Brand: Price: $ 9.09 |
EFI Decal | 1 | $ 9.09 | ||
| 26 | 68111-90J01 Emblem Mark
SKU: 68111-90J01 Weight: 0.060000 Brand: Price: $ 16.84 |
Emblem Mark | 1 | $ 16.84 | ||
| 27 | 61458-99E31 Engine Cover Label
SKU: 61458-99E31 Weight: 0.060000 Brand: Price: $ 12.28 |
Engine Cover Label | 1 | $ 12.28 | ||
| 28 | 69716-99E14 Fuel Limitation Label
SKU: 69716-99E14 Weight: 0.200000 Brand: Price: $ 4.11 |
Fuel Limitation Label | 1 | $ 4.11 | ||
| 29 | 61469-87D00-HY6 Counter Rotation Mark
SKU: 61469-87D00-HY6 Weight: 0.060000 Brand: Price: $ 9.32 |
Counter Rotation Mark | 1 | $ 9.32 | DF140Z: 2003 | |
| 30 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 29.52 |
Tool Set | 1 | $ 29.52 | ||
| 31 | 61580-92J00 Air Intake Inner Plate (NLA)
SKU: 61580-92J00 Weight: 0.060000 Brand: Price: $ 182.02 |
Air Intake Inner Plate (NLA) | 1 | $ 182.02 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
