Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

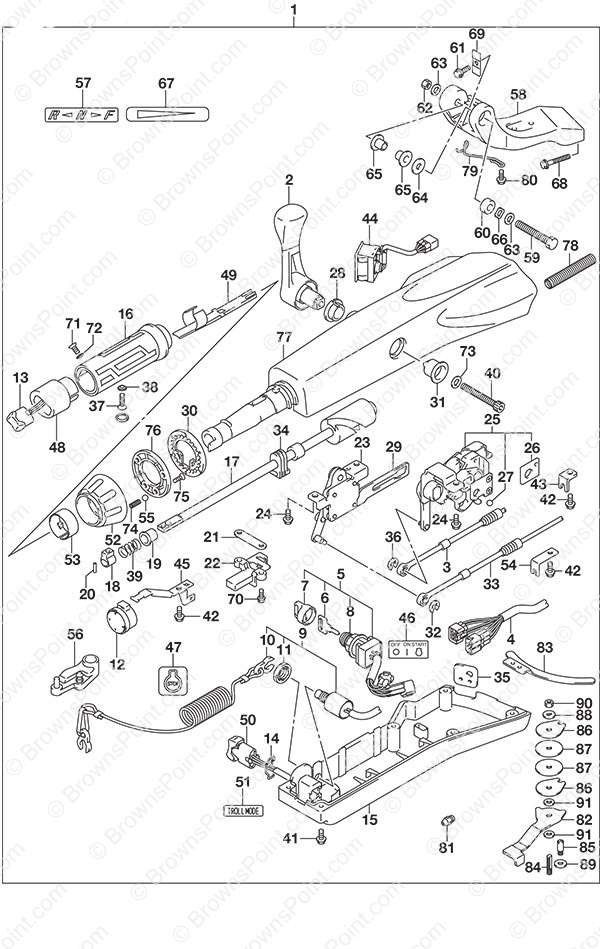

Fig. 570 - Opt: Tiller Handle

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 63002-88L21-0EP Tiller Handle Kit 1 $ 1,375.90

Not Available

Black
2 21110-88L00 Shift Lever (NLA) 1 $ 110.82
3 23230-88L00 Shift Cable 1 $ 89.28
4 36620-88L11 Handle Wire Harness 1 $ 97.48
5 37110-87L01 Ignition Switch Assembly 1 $ 75.28

Not Available

6-1 37141-99E00 (931) Ignition Key 1 $ 15.38
6-2 37141-99E10 (932) Ignition Key 1 $ 15.38
6-3 37141-99E20 (933) Ignition Key 1 $ 15.38
6-4 37141-99E30 (934) Ignition Key 1 $ 15.38
6-5 37141-99E40 (935) Ignition Key 1 $ 15.38
6-6 37141-99E50 (936) Ignition Key 1 $ 15.38
6-7 37141-99E60 (937) Ignition Key 1 $ 15.38
6-8 37141-99E70 (938) Ignition Key 1 $ 15.38
6-9 37141-99E80 (939) Ignition Key 1 $ 15.38
6-10 37141-99E90 (940) Ignition Key 1 $ 15.38
6-11 37141-99EA0 (941) Ignition Key 1 $ 15.38
6-12 37141-99EB0 (942) Ignition Key 1 $ 15.38
7 37141-99E00 (931) Ignition Key 1 $ 15.38
8 37149-93J00 Cylinder Body Cap 1 $ 8.50
9 37820-87L02 Emergency Switch Assembly 1 $ 48.38
10 37823-92E02 Stop Switch Lanyard 1 $ 19.68
11 37826-92J00 Nut 1 $ 5.77
12 38500-93J90 Warning Buzzer 1 $ 39.28
13 37850-87L01 PTT Switch Assembly 1 $ 56.62
14 37852-87J00 Trim Switch Cap 1 $ 17.33
15 63121-88L00 Under Cover 1 $ 44.12
16 63210-88L00 Handle Grip 1 $ 51.67
17 63221-88L00 Throttle Shaft (NLA) 1 $ 58.36

Not Available

18 63223-92D00 Handle Rod Stopper 1 $ 4.49
19 63225-88L00 Handle Rod Bushing (NLA) 1 $ 8.57

Not Available

20 63227-93200 Handle Rod Pin 1 $ 2.18
21 63235-88L00 Throttle Shaft Plate 1 $ 10.13
22 63246-88L00 Throttle Adjust Stopper (NLA) 1 $ 10.20

Not Available

23 63250-88L00 Throttle Arm Assembly (NLA) 1 $ 113.80

Not Available

24 63251-87J00 Screw (6x12) 4 $ 3.81
25 63260-88L00 Shift Gear Assembly 1 $ 205.87
26 63272-87J00 Ball Guide Plate 1 $ 13.13
27 63273-87J00 Ball (NLA) 1 $ 4.60

Not Available

28 63262-87J00 Shift Lever Bushing 1 $ 4.32
29 63271-87J00 Lock Plate 1 $ 18.34
30 63248-99J00 Throttle Adjuster Notch Plate 1 $ 5.19

Not Available

31 63261-87J00 Shift Gear Bushing 1 $ 13.38
32 63274-87J00 E Ring (NLA) 1 $ 1.85

Not Available

33 63610-88L00 Throttle Cable 1 $ 91.49
34 37853-88L90 PTT Switch Lead Grommet 1 $ 10.80
35 63626-88L00 Cable Grommet (NLA) 1 $ 11.41

Not Available

36 67292-87J00 E Ring 2 $ 2.82
37 09126-06015 Screw (6x23) 1 $ 2.62
38 09163-06001 Lock Washer (6.4x12x0.5) 1 $ 1.49
39 09440-12027 Spring 1 $ 1.39
40 21112-88L00 Shift Lever Bolt 1 $ 13.23

Not Available

41 09125-05047 Screw (5x14) 6 $ 1.95
42 63611-88L00 Clamp Bracket Bolt (NLA) 3 $ 10.20

Not Available

43 63612-87J00 Clamp Bracket 1 $ 34.67
44 34200-87L00 Tachometer w/Monitor 1 $ 162.40
45 36617-88L90 Main Harness Clamp Bracket 1 $ 6.33
46 37112-88L90 Ignition Switch Label (NLA) 1 $ 7.39

Not Available

47 37835-91J00-YAY Stop Label 1 $ 1.20
48 37851-88L90 PTT Switch Base 1 $ 17.37
49 37852-88L90 Guide Harness 1 $ 9.82

Not Available

50 37861-87L10 Troll Mode Control Switch 1 $ 52.18

Not Available

51 37864-88L90 Troll Mode Label (NLA) 1 $ 6.29

Not Available

52 63244-99J00 Throttle Adjuster Knob 1 $ 9.41
53 63245-99J00 Throttle Adjuster Bushing 1 $ 4.82

Not Available

54 63612-88L10 Clamp Shift Bracket (NLA) 1 $ 8.57

Not Available

55 09260-10006 Ball 1 $ 2.53
56 19120-88L11 Throttle Lever 1 $ 22.28

Not Available

57 21131-88L00 Clutch Shift Mark 1 $ 2.24

Not Available

58 43761-88L01-0EP Tiller Handle Bracket 1 $ 365.42
59 43762-88L00 Tiller Handle Pivot Bolt 1 $ 29.63
60 43768-88L00 Tiller Handle Spacer 1 $ 45.21
61 09116-08137 Bolt (8x22) 1 $ 7.44
62 09159-12014 Nut (12x17) 1 $ 5.04
63 09160-12066 Washer (12.5x22x2.5) 2 $ 1.80
64 09160-12124 Washer (12.5x32x1.5) 1 $ 4.43
65 63115-88L01 Tiller Handle Bushing 2 $ 4.83
66 09164-13010 Washer 1 $ 10.38
67 63215-93110 Handle Grip Mark 1 $ 3.19
68 09116-10150 Bolt (10x55) 2 $ 15.95
69 63132-88L00 Tiller Handle Stopper 1 $ 13.23
70 63251-88L90 Bolt 2 $ 3.69

Not Available

71 37855-88L90 Throttle Grip Screw 1 $ 3.25
72 37854-88L90 Throttle Grip Washer 1 $ 2.71
73 63258-88L00 Washer 1 $ 2.29

Not Available

74 09440-06037 Spring 1 $ 0.69

Not Available

75 03522-05169 Screw 3 $ 0.00
76 63247-99J00 Throttle Adjuster Knob Plate 1 $ 4.90

Not Available

77 63111-88L00-0EP Tiller Handle Housing (NLA) 1 $ 255.19

Not Available

Black
78 33834-88L00 Protector 1 $ 4.18
79 65793-88L00 Fuel Hose Holder 1 $ 0.00
80 09116-06237 Bolt (6x15) 2 $ 2.59
81 22511-99011 Grease Nipple 1 $ 3.36
82 43411-88L00 Steering Adjuster 1 $ 23.10

Not Available

83 43415-88L00 Steering Adjuster Plate 1 $ 31.37
84 43512-88L00 Steering Adjust Thread Shaft 1 $ 21.61
85 43513-88L00 Steering Adjust Bolt 1 $ 13.05
86 43514-88L00 Steering Adjust Friction Plate 2 $ 8.42
87 43515-88L00 Steering Adjust Friction Washer Plate 2 $ 14.42
88 43516-88L00 Steering Adjust Friction Washer 1 $ 6.48
89 43517-88L00 Steering Adjuster Spacer 1 $ 6.80
90 09159-08059 Nut 1 $ 5.21
91 09161-08011 Washer (8.2x18x1.2) 2 $ 1.77

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
