Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

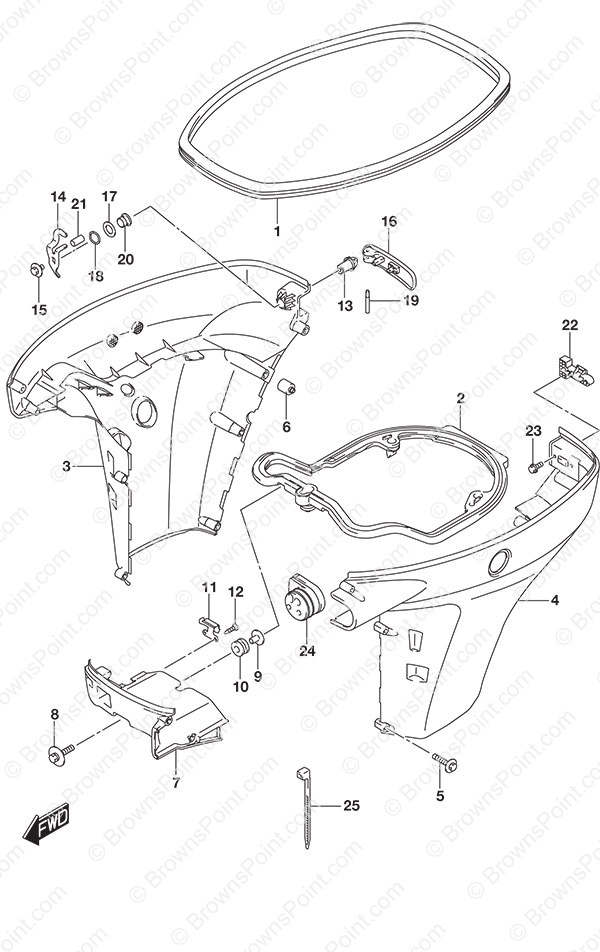

Fig. 410 - Side Cover

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 61112-88L10 Side Cover Rubber 1 $ 60.65
2 61134-88L10 Side Cover Seal 1 $ 54.89

Not Available

3-1 61811-88L20-0EP Starboard Side Cover 1 $ 464.01
Black
3-2 61811-88L20-Y5S Starboard Side Cover 1 $ 464.01
White
4-1 61821-88L20-0EP Port Side Cover 1 $ 464.01
Black
4-2 61821-88L20-Y5S Port Side Cover 1 $ 501.25
White
5 09139-06249 SCREW 10 $ 1.96
6 61151-88L00 Side Cover Cushion 1 $ 3.93

Not Available

7-1 61831-88L10-0EP Front Panel 1 $ 125.43
Black
7-2 61831-88L10-Y5S Front Panel 1 $ 125.43
White
8 09116-08174 Bolt (8x38) 2 $ 4.19
9 09160-08039 Washer (8.5x19x2.3) 2 $ 2.04
10 09320-11023 CUSHION,FRONT P 2 $ 2.91
11 61412-88L00 Front Panel Hook 1 $ 16.71
12 03542-05169 SCREW 2 $ 1.70
13 61632-93J00 Engine Cover Hook Shaft 1 $ 37.52
14 61641-88L00 Engine Cover Hook 1 $ 15.57
15 09116-06127 Bolt (6x12) 1 $ 2.98
16 61633-88L00 Rear Hook Lever 1 $ 15.82
17 09160-13014 Washer (13.2x25x1.0) 1 $ 2.99
18 09164-14008 Wave Washer 1 $ 2.04
19 09202-04022 Hook Lever Pin 1 $ 2.82
20 09306-13007 Bushing 1 $ 2.81
21 09352-50901-600 Hose (5x9x600) 1 $ 8.20
L:600->20
22 61673-93J11 Hook Lever Latch 1 $ 14.60
23 09116-05010 Bolt (5x12) 2 $ 2.14
24 61124-88L11 Remocon Cable Grommet 1 $ 12.61
25 09407-25402 Clamp (L:248) 1 $ 4.73

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
