Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

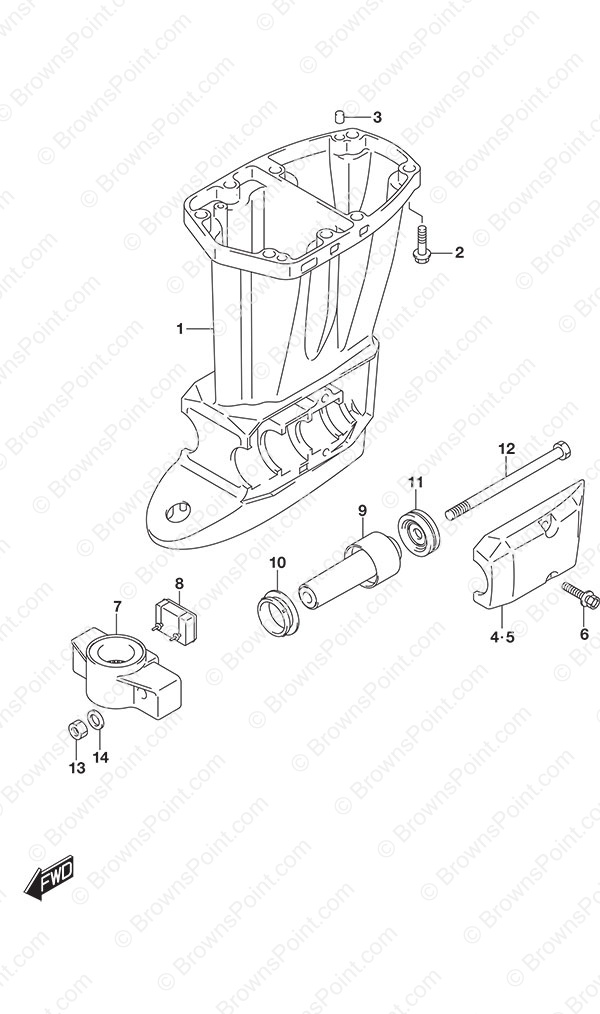

Fig. 405 - Drive Shaft Housing

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 52111-88L10-0EP Drive Shaft Housing (L) 1 $ 510.36
Black
1-2 52111-88L10-Y5S Drive Shaft Housing (L) (NLA) 1 $ 384.26

Not Available

White
2 09116-10176 Bolt (10x44) 8 $ 6.81
3 09202-08006 Knock Pin (8x12) 2 $ 2.77
4-1 54221-88L20-0EP Lower Mount Stbd Cover 1 $ 53.84
Black
4-2 54221-88L20-Y5S Lower Mount Stbd Cover 1 $ 0.00
White
5-1 54231-88L10-0EP Lower Mount Port Cover 1 $ 53.84

Not Available

Black
5-2 54231-88L10-Y5S Lower Mount Port Cover 1 $ 48.30
White
6 09116-10176 Bolt (10x44) 4 $ 6.81
7-1 54211-87J30-0EP Lower Mount Bracket 1 $ 136.74
Black
7-2 54211-87J30-Y5S Lower Mount Bracket 1 $ 0.00
White
8 54151-88L00 Lower Thrust Mount 1 $ 8.12

Not Available

9 54160-88L10 Lower Mount 2 $ 91.92
10 54167-87L01 Lower Side Mount 2 $ 7.90
11 54180-88L00 Forward Stopper Damper 2 $ 21.92

Not Available

12 54166-95J02 Mount Bolt 2 $ 35.12
13 09159-12014 Nut (12x17) 2 $ 5.04
14 54114-90J10 Washer 2 $ 6.03

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
