Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

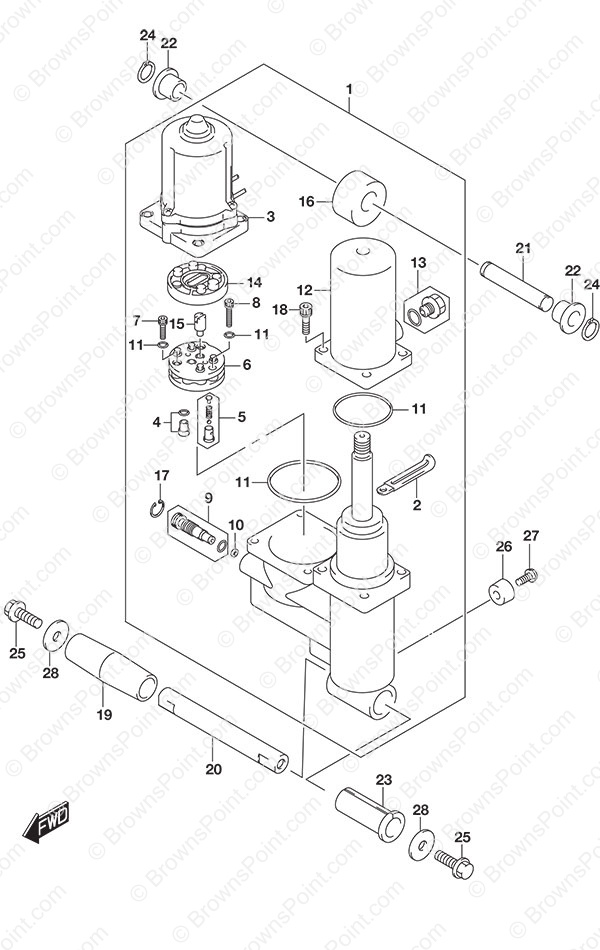

Fig. 337 - Trim Cylinder

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 48000-88L30 TRIM ASSY,POWER 1 $ 1,579.71
2 29404-93J11 Clamp (L:65) 1 $ 1.57
3 38100-88L12 PTT Motor Assembly 1 $ 580.61
4 48320-87J10 Up Pressure Valve 1 $ 40.01
5 48330-87J10 Down Pressure Valve 1 $ 32.15
6 48510-97E00 Gear Pump Assembly 1 $ 137.24
7 48541-87J10 Bolt (NLA) 2 $ 9.31

Not Available

8 48541-87J20 Bolt (NLA) 1 $ 9.80

Not Available

9 48551-88L00 Manual Valve 1 $ 94.90
10 48553-88L00 Washer Seal 1 $ 15.01
11 48557-87J10 O-Ring Set 1 $ 12.65
12 48571-88L01 Reservoir Tank 1 $ 168.08
13 48572-87L00 Plug 1 $ 21.60
14 48582-97E01 Filter 1 $ 19.97
15 48583-87J10 Drive Joint 1 $ 22.14
16 48611-88L00 Metal Joint (NLA) 1 $ 166.85

Not Available

17 48681-87J11 Circlip 1 $ 9.47
18 48862-87J20 Reservoir Tank Bolt 4 $ 15.52
19 47225-87J00 Tilt Cylinder Lower Collar (NLA) 1 $ 7.94
20 48121-89J10 Tilt Cylinder Lower Shaft 1 $ 79.35
21 48321-89J11 Tilt Cylinder Upper Shaft 1 $ 18.30
22 48325-89J00 Tilt Cylinder Upper Bushing 2 $ 3.65
23 48326-87J00 Tilt Cylinder Lower Bushing 1 $ 8.84
24 09380-12002 Snap Ring 2 $ 1.52
25 09116-10179 Bolt (10x35) 2 $ 11.01
26 55321-87J01 Aluminum Anode 1 $ 7.36
27 09103-06281 Bolt (6x14) 1 $ 2.99
28 09160-10139 Washer (10.5x35x3) (NLA) 2 $ 3.56

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
