Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

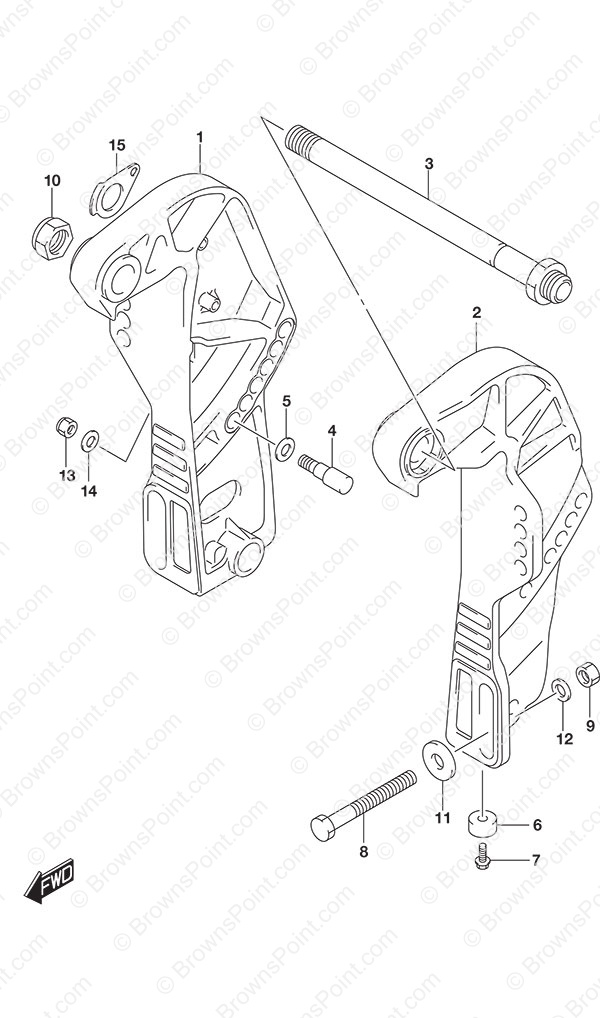

Fig. 335 - Clamp Bracket

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 41111-88L20-0EP Starboard Clamp Bracket 1 $ 0.00
Black
1-2 41111-88L20-Y5S Starboard Clamp Bracket 1 $ 378.07
White
2-1 41121-88L10-0EP Port Clamp Bracket 1 $ 0.00
Black
2-2 41121-88L10-Y5S Port Clamp Bracket 1 $ 374.29
White
3 41130-87J11 Clamp Bracket Shaft 1 $ 176.27
4 45421-89J00 Tilt Lock Pin 2 $ 24.77
5 09160-12066 Washer (12.5x22x2.5) 2 $ 1.80
6 55321-87J01 Aluminum Anode 2 $ 7.36
7 09103-06281 Bolt (6x14) 2 $ 2.99
8-1 09100-12093 Transom Bolt (12x100) 4 $ 13.75
8-2 09100-12091 Transom Bolt (12x115) 1 $ 14.20
Optional
9 09159-12014 Nut (12x17) 4 $ 5.04
10 09159-22006 Nut 1 $ 25.75
11 09160-12044 Washer (12.5x35x3.2) 4 $ 3.49
12 09160-12126 Washer (12.5x22x3) 4 $ 3.13
13 09159-10050 Nut 2 $ 2.59
14 09160-10082 Washer (10.5x19x2.0) 2 $ 1.63
15 41135-93J00 Clamp Bracket Shaft Washer 1 $ 6.66

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
