Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

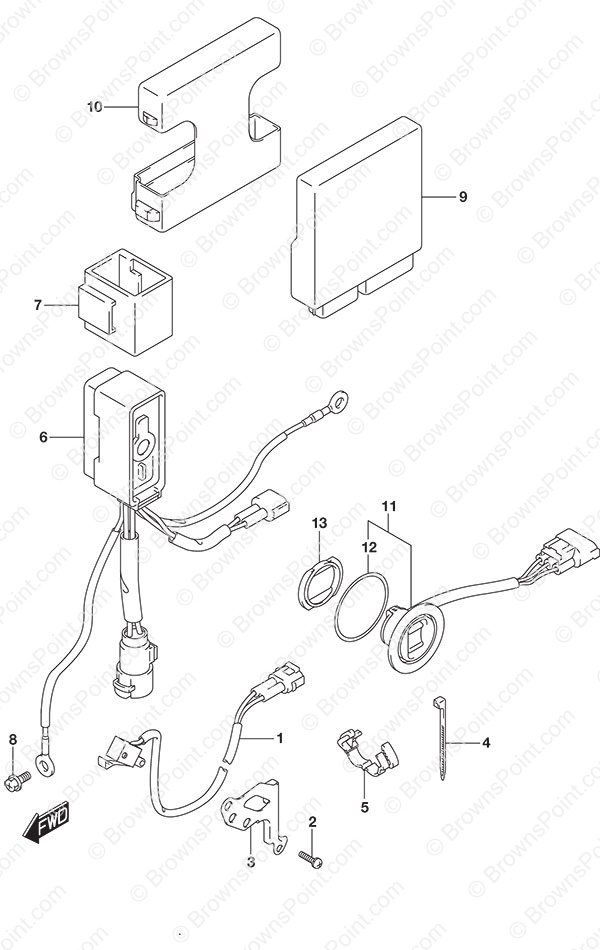

Fig. 326 - PTT Switch/Engine Control Unit

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 37721-93J00 Neutral Switch Assembly 1 $ 41.14
2 09137-04004 Screw (4x16) 2 $ 2.36
3 37725-88L00 Neutral Switch Bracket 1 $ 8.95
4 09407-10404 Clamp (L:100) 1 $ 2.52
5 09408-00184 Clamp 1 $ 2.95
6 38410-93J12 PTT Relay Assembly 1 $ 136.14
7 38415-93J00 PTT Relay Holder 1 $ 6.68
8 01550-06127 BOLT 1 $ 2.33
9 33930-88L20 Engine Control Unit 1 $ 2,043.62

Not Available

10 33925-88L10 ECU Cushion 1 $ 12.04
11 37850-92J00 PTT Switch Assembly 1 $ 101.06
12 37856-92J00 PTT Switch Tape 1 $ 3.89
13 37857-92J01 PTT Switch Bushing 1 $ 2.90

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
