Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

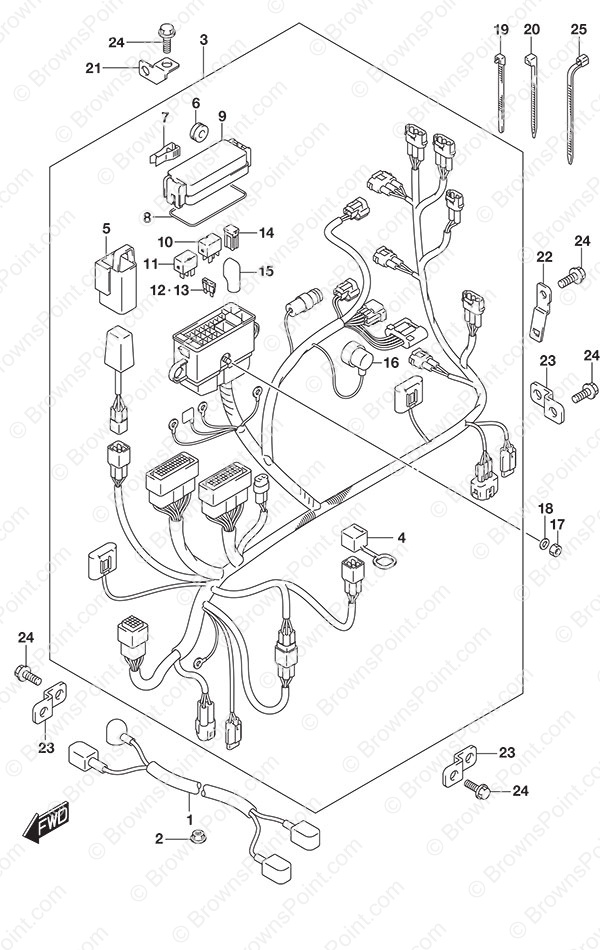

Fig. 322 - Harness

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 33810-88L10 Starter Motor Cable Assembly 1 $ 173.15
2 08316-10087 Nut 1 $ 2.27
3 36610-88LG1 Wiring Harness Assembly 1 $ 648.41

Not Available

4 33634-96J00 Service Connector Cap 1 $ 7.28
5 36668-87L00 Service Connector Cap 1 $ 11.04
6 09320-08510 Cushion (8.5x20x8) 2 $ 1.71
7 36737-96J00 Fuse Puller (NLA) 1 $ 4.01

Not Available

8 36721-96J00 Upper Cover O-Ring 1 $ 11.89
9 36738-88L00 Fuse Case Upper Cover 1 $ 16.50
10 38860-76F01 Relay 1 $ 36.31
11 38860-76F01 Relay 1 $ 36.31
12 09481-15501 15 Amp Fuse 3 $ 2.06
13 09481-30501 30 Amp Fuse 3 $ 2.33
14 09481-30401 30 Amp Fuse 2 $ 7.53
15 36612-96J01 CAP,TERMINAL 1 $ 4.94
16 36618-43410 Oil Pressure Switch Cap (NLA) 1 $ 2.60
17 08310-00067 Nut 1 $ 1.85
18 08321-01067 Lock Washer 1 $ 1.85
19 09407-14403 Clamp (L:125) 1 $ 2.27
20 09407-14407 Clamp (L:140) 1 $ 3.09
21 36617-88L00 Harness Bracket (NLA) 2 $ 3.47

Not Available

22 36617-88L10 Harness Bracket 1 $ 4.61
23 36617-93J10 Harness Bracket 2 $ 2.00
24 01550-06127 BOLT 5 $ 2.33
25 09407-18402 Clamp (L:165) 1 $ 2.21

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
