Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

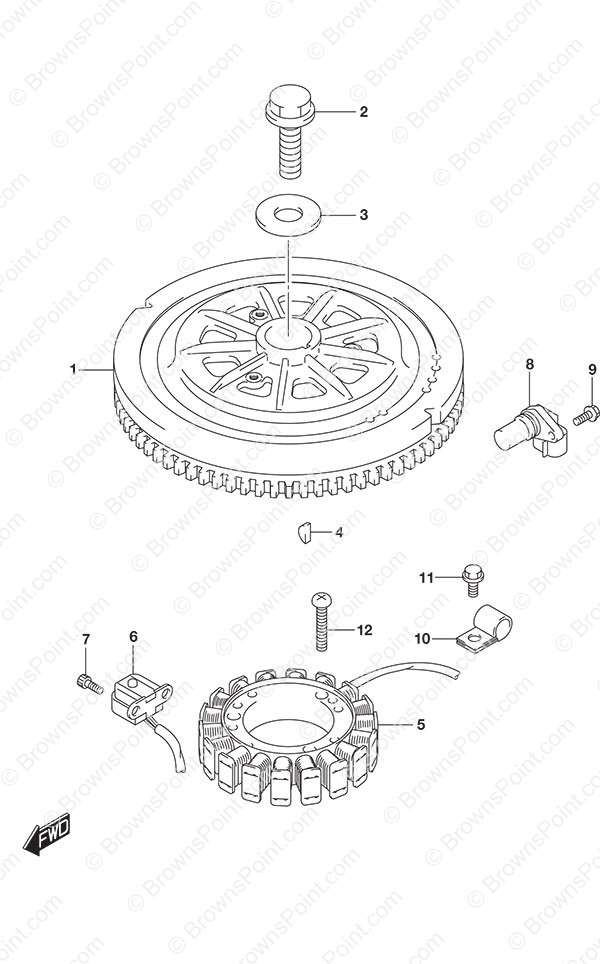

Fig. 303 - Magneto

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 32102-88L01 Flywheel 1 $ 516.77
2 09103-14024 Flywheel Bolt (14x50) 1 $ 9.42
3 09160-14065 Washer (14.5x36x4.5) 1 $ 3.74

Not Available

4 09420-04008 Key 1 $ 3.48
5 32120-88L00 Battery Charging Coil 1 $ 444.60
6 32160-88L01 CKP/Ignition Timimg Coil 1 $ 96.82
7 09106-05030 Bolt (5x10) 2 $ 2.62
8 33220-64L10 Cam Position Sensor 1 $ 109.52
9 01547-06167 BOLT 6X16 1 $ 1.66
10 09403-13413 CLAMP 1 $ 5.28
11 01550-06127 BOLT 1 $ 2.33
12 02112-06307 SCREW, 6X30 CRO 3 $ 1.97

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
