Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

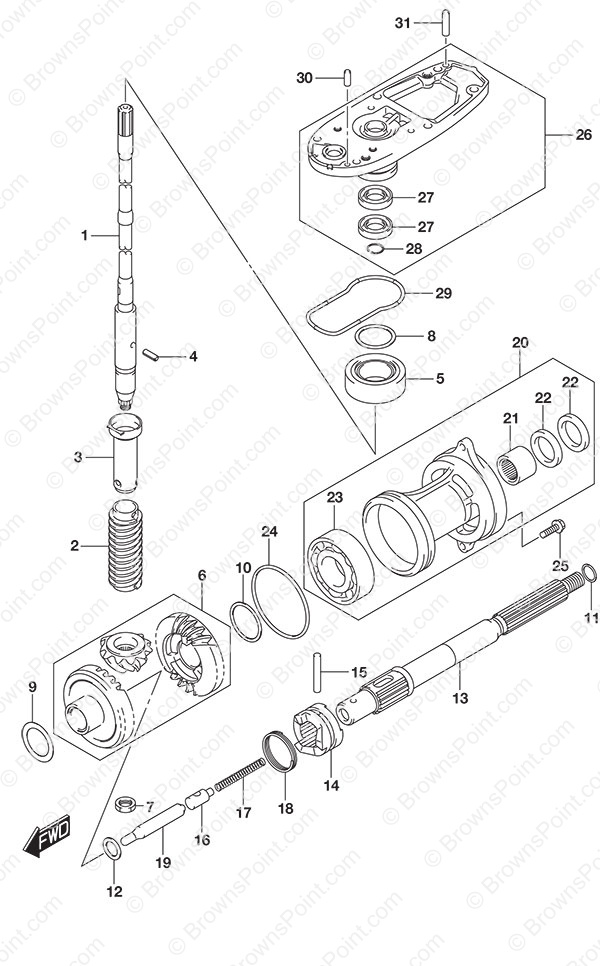

Fig. 220 - Transmission

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 57110-88L12 Drive Shaft Assembly (L) 1 $ 414.14
2 57133-88L01 Drive Shaft Collar 1 $ 16.15
3 57133-94400 Drive Shaft Spring Collar 1 $ 14.68
4 09205-03019 Spring Pin (3x10) 1 $ 1.73
5 09265-20015 Bearing (20x42x15) 1 $ 58.21
6 57300-88810 Pinion & Gear Set 1 $ 446.74
7 09140-12034 Pinion Nut 1 $ 3.02
8-1 09181-35101 Shim (0.50) 0 $ 2.17
Drive Shaft Adj
8-2 09181-33001 Washer (1.50) 0 $ 3.37
8-3 09181-33002 Washer (0.60) 0 $ 3.13
8-4 09181-33003 Washer (0.65) 0 $ 3.37
8-5 09181-33004 Washer (0.70) (NLA) 0 $ 2.35
8-6 09181-33005 Washer (0.75) 0 $ 3.37
8-7 09181-33006 Washer (0.80) 0 $ 3.37
8-8 09181-33007 Washer (0.85) 0 $ 3.37
8-9 09181-33008 Washer (0.90) 0 $ 3.37
8-10 09181-33009 Washer (0.95) 0 $ 3.37
8-11 09181-35110 Shim (1.00) 0 $ 4.96
9-1 09181-30186 Shim (0.50) 0 $ 3.61
Forward Backup
9-2 09181-30187 Shim (0.60) 0 $ 3.52
9-3 09181-30188 Shim (0.70) 0 $ 3.58
9-4 09181-30190 Shim (0.80) 0 $ 3.61
9-5 09181-30192 Shim (0.90) 0 $ 3.52
10-1 08221-35455 Shim (0.50) 0 $ 3.31
Reverse Backup
10-2 09181-35131 Shim (0.60) 0 $ 3.38
10-3 09181-35132 Shim (0.70) 0 $ 3.38
10-4 08221-35456 Shim (0.80) 0 $ 3.40
10-5 09181-35136 Shim (0.90) 0 $ 2.49
10-6 08211-35451 Shim (1.00) 0 $ 3.40
11-1 09160-22018 Washer (1.80) 1 $ 3.89
Prop Shaft Thrust
11-2 09160-22019 Washer (1.90) 1 $ 3.89
11-3 09160-22020 Washer (2.00) 1 $ 4.13
11-4 09160-22021 Washer (2.10) 1 $ 4.13
11-5 09160-22022 Washer (2.20) 1 $ 3.89
11-6 09160-22023 Washer (2.30) 1 $ 3.89
12 08211-20263 Thrust Washer (2.00) 1 $ 2.45
13 57610-94403 Propeller Shaft Assembly 1 $ 176.87
14 57621-87J03 Clutch Dog Shifter 1 $ 73.80
15 09202-05022 Clutch Dog Shifter Pin 1 $ 3.47
16 57634-88L00 Push Pin 1 $ 8.51
17 09440-08043 Return Spring 1 $ 2.72
18 09440-40002 Clutch Dog Spring 1 $ 3.21
19 57631-95303 Push Rod 1 $ 13.48
20-1 56120-94321-0EP Propeller Shaft Bearing Housing 1 $ 203.58
Black
20-2 56120-94321-Y5S Propeller Shaft Bearing Housing 1 $ 143.46
White
21 09263-22020 Bearing (22.225x28.575.19.05) 1 $ 19.54
22 09289-22007 Oil Seal (21.2x35x5) 2 $ 5.22
23 09262-35070 Bearing (35x62x14) 1 $ 47.33
24 09280-75001 O-Ring 1 $ 4.85
25 09116-08122 Bolt (8x30) 2 $ 4.66
26-1 56130-87J12-0EP Drive Shaft Bearing Housing 1 $ 143.89
Black
26-2 56130-87J12-Y5S HOUSING,DRIVE S 1 $ 147.10
White
27 09282-17005 Oil Seal (16x32x6) 2 $ 6.28
28 08331-41329 Circlip 1 $ 2.43
29 55122-88L00 Gear Case Seal Ring 1 $ 7.61
30 09202-06025 Pin (6x17) 1 $ 1.62
31 09202-06027 Pin (6x23) 1 $ 1.62

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
