Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

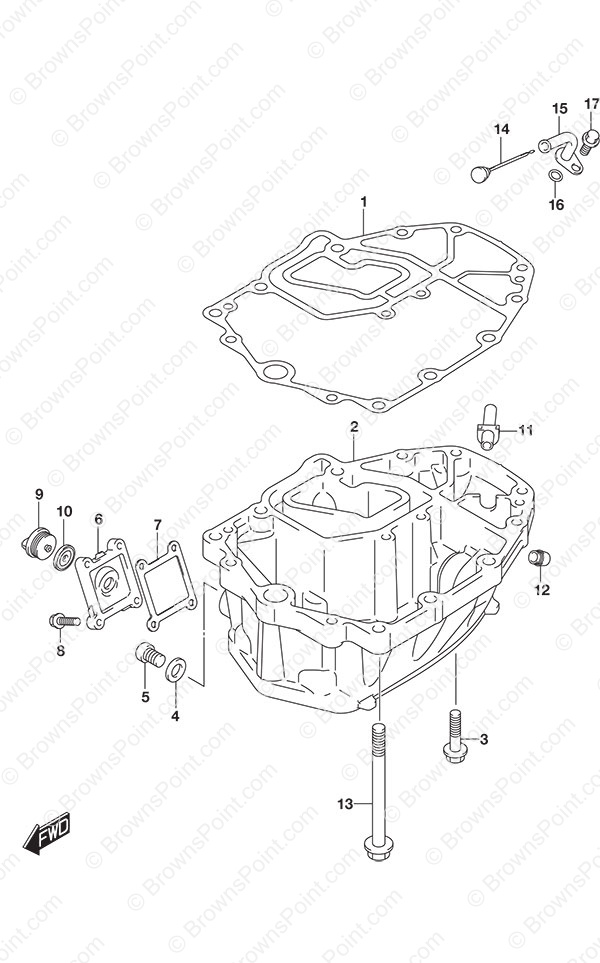

Fig. 180 - Oil Pan

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 11489-88L01 Oil Pan Gasket 1 $ 33.31
2-1 11501-88L01-0EP Oil Pan 1 $ 744.60
Black
2-2 11501-88L01-Y5S Oil Pan (NLA) 1 $ 676.80

Not Available

White
3 09116-08128 Bolt (8x40) 6 $ 4.11
4 09168-12012 Oil Drain Plug Gasket 1 $ 1.85
5 09248-12009 Oil Drain Plug 1 $ 5.88
Oil Drain
6-1 11551-88L00-0EP Water Jacket Oil Pan Cover 1 $ 50.60
Black
6-2 11551-88L00-Y5S Water Jacket Oil Pan Cover 1 $ 55.45
White
7 11552-88L00 Water Jacket Cover Gasket 1 $ 5.29
8 09116-06121 Bolt (6x25) 4 $ 2.72
9 17913-93J00 Water Flush Plug 1 $ 4.56
10 17914-93J01 Water Flush Plug Gasket 1 $ 2.28
11 11543-88L00 Exhaust Silencer (NLA) 1 $ 6.31

Not Available

12 43112-94L01 Exhaust Pipe 1 $ 6.24
13 09116-10124 Bolt (10x150) 6 $ 19.88
14 16910-88L00 Oil Level Gauge 1 $ 16.65
15 16930-88L00 Oil Level Gauge Guide 1 $ 14.98

Not Available

16 09280-09008 O-Ring 1 $ 3.16
17 01550-06127 BOLT 1 $ 2.33

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
