Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

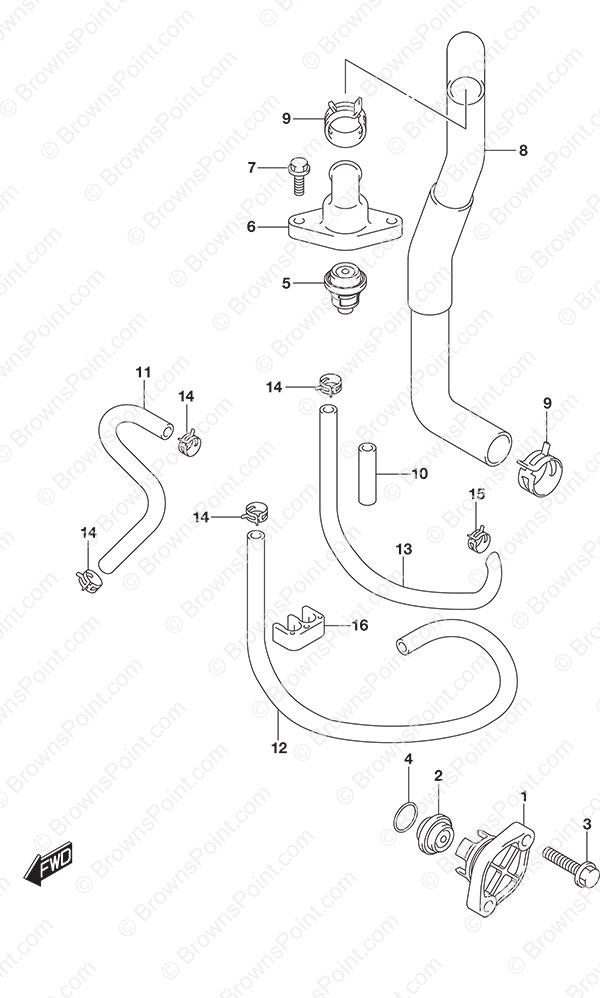

Fig. 162 - Thermostat

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 17611-90J00 Water Pressure Valve Cover 1 $ 34.00
2 17660-99E01 Water Pressure Valve 1 $ 17.21
3 09116-06121 Bolt (6x25) 2 $ 2.72
4 09280-26006 O-Ring 1 $ 2.80
5 17670-93955 Thermostat (60c) 1 $ 57.90
6 17681-88L00 Thermostat Cover 1 $ 38.29
7 01550-06207 BOLT 2 $ 2.33
8 11196-88L00 Water Return Hose 1 $ 26.45
9 09401-25406 Clip 2 $ 3.57
10 18498-94J20 Hose Protector (L:320) (NLA) 2 $ 5.47

Not Available

L:320->50
11 17712-88L00 Water Hose 1 $ 6.06
12 09352-50006-600 Hose (5x9x600) 1 $ 7.60
L:600->500
13 09359-50901-980 Hose 1 $ 19.97
L:980->250
14 09401-08413 Clip 5 $ 2.09
15 09401-10412 Clip 1 $ 2.72
16 09408-00175 Clamp 1 $ 2.72

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
