Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

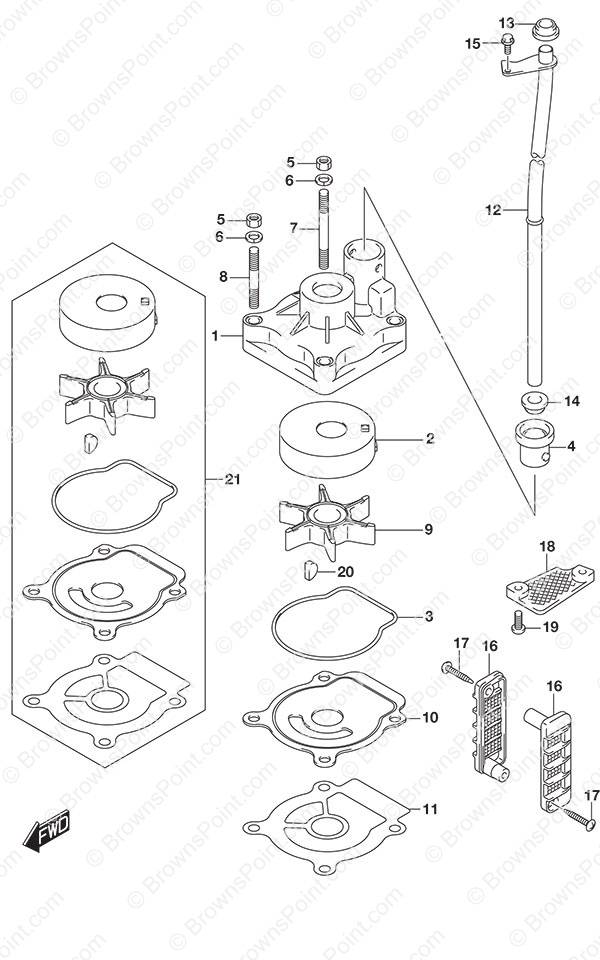

Fig. 160 - Water Pump

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 17410-88L00 Water Pump Case 1 $ 68.42
2 17413-95J00 Water Pump Case Sleeve 1 $ 22.79
3 17416-95J00 Water Pump Case Seal 1 $ 7.01
4 17564-88L01 Water Pump Case Bushing 1 $ 2.96
5 29141-93J00 Nut (6mm) 4 $ 1.80
6 29162-93J00 Lock Washer 4 $ 1.52
7 09108-06143 Stud Bolt (L:45) 2 $ 6.73
8 09108-06144 Stud Bolt (L:31) 2 $ 6.16
9 17461-96312 Water Pump Impeller 1 $ 30.31
10 17471-95J01 Water Pump Plate 1 $ 8.67
11 17472-96304 Water Pump Plate Gasket 1 $ 2.28
12 17560-88L10 Water Tube (L) 1 $ 43.89

Not Available

13 17562-87L00 Replaced by 17562-87L01 1 $ 3.46

Not Available

14 17562-87L00 Replaced by 17562-87L01 1 $ 3.46

Not Available

15 09116-06236 Bolt (6x16) 1 $ 1.78
16 17631-96320 Water Filter 2 $ 7.63
17 03142-04309 SCREW 4 X 30 2 $ 2.34
18-1 17635-87E00 Sub Water Filter 1 $ 5.02
18-2 17635-87E10 Gear Case Plate 1 $ 109.56
Optional
19 09125-05046 Screw (5x12) 2 $ 1.82
20 09420-04006 Impeller Key 1 $ 3.93
21 17400-88L01 Water Pump Repair Kit DF40A/DF50A/DF60A 1 $ 52.12
Optional

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
