Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

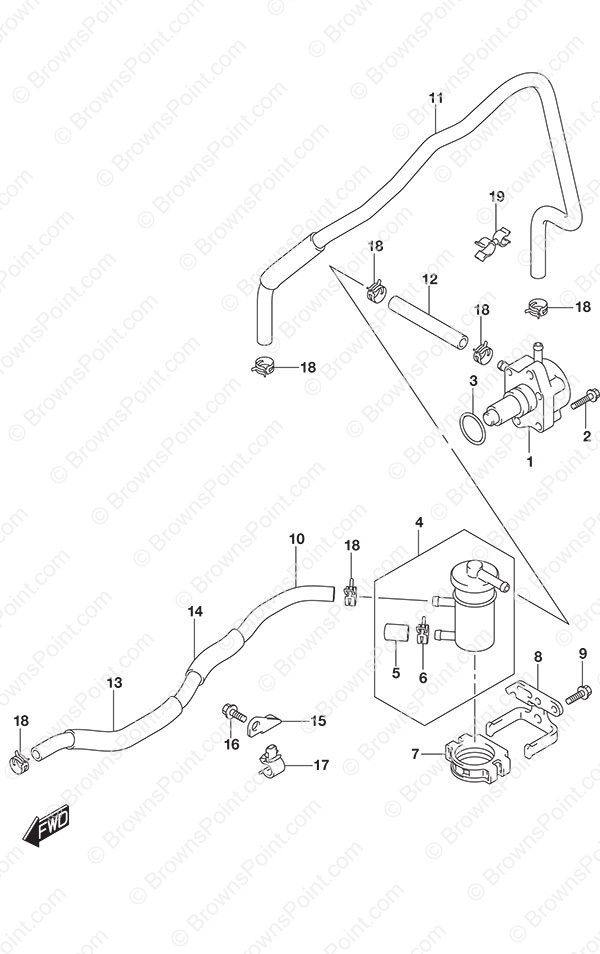

Fig. 146 - Fuel Pump

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 15100-90J11 Fuel Pump Assembly 1 $ 165.75
2 01550-06257 BOLT 2 $ 2.33
3 09280-26005 O-Ring 1 $ 2.33
4 15410-88L00 Fuel Filter 1 $ 16.22
5 15419-87J00 Fuel Filter Cap 1 $ 7.40
6 09401-11423 Clip 1 $ 2.09
7 15422-96J01 Fuel Filter Clamp 1 $ 6.41
8 15421-88L00 Fuel Filter Bracket 1 $ 11.52
9 01550-06167 BOLT 2 $ 2.33
10 15191-88L10 Fuel Hose 1 $ 73.42
11 15192-88L20 Fuel Hose 1 $ 51.03
12 09343-70503-080 Fuel Hose (7x12x80) 1 $ 8.52
13 18498-99E11 Hose Protector (L:610) 1 $ 11.51
L:610->230
14 18498-96J21 Hose Protector (13.5x16.5x370) 1 $ 6.62
L:370->95
15 15197-88L00 Fuel Hose Clamp Bracket 1 $ 4.61
16 01550-06127 BOLT 1 $ 2.33
17 09403-11320 Clamp 3 $ 2.52
18 09401-11423 Clip 5 $ 2.09
19 09408-00145 Clip 1 $ 0.00

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
