Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

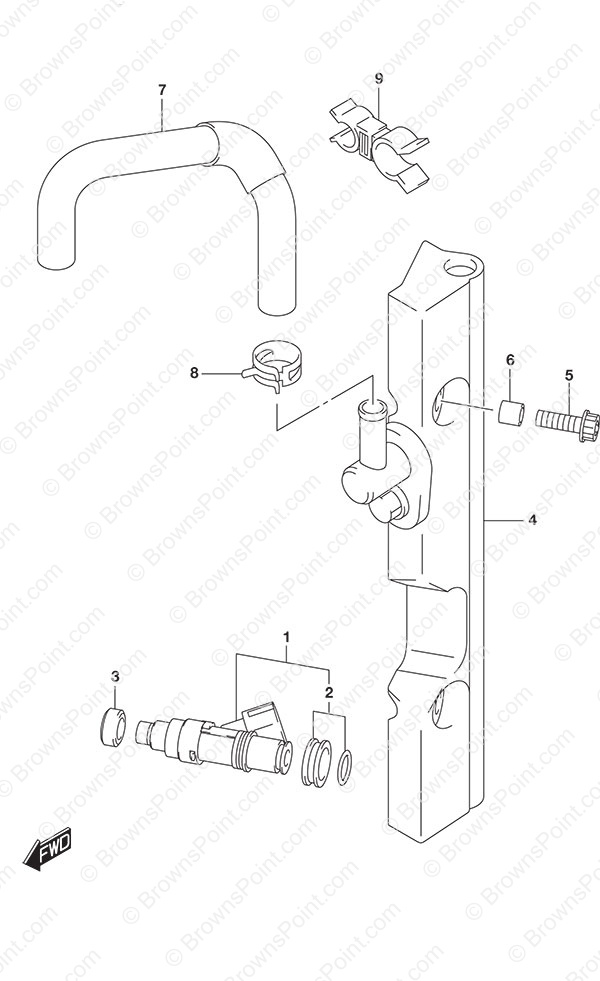

Fig. 144 - Fuel Injector

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 15710-85K00 Fuel Injector 3 $ 228.00
2 15716-65DT0 Grommet Set 3 $ 19.06
3 09320-08062 Cushion 3 $ 13.65
4 15750-88L10 Delivery Pipe (NLA) 1 $ 136.21
5 07120-06357 Bolt (NLA) 2 $ 2.20

Not Available

6 09180-06198 Spacer (6.2x12x16) 2 $ 3.74
7 15681-88L10 Fuel Hose 1 $ 40.67
8 09401-11425 Clip 2 $ 3.46
9 09408-00174 Clamp (NLA) 1 $ 2.99

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
