Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

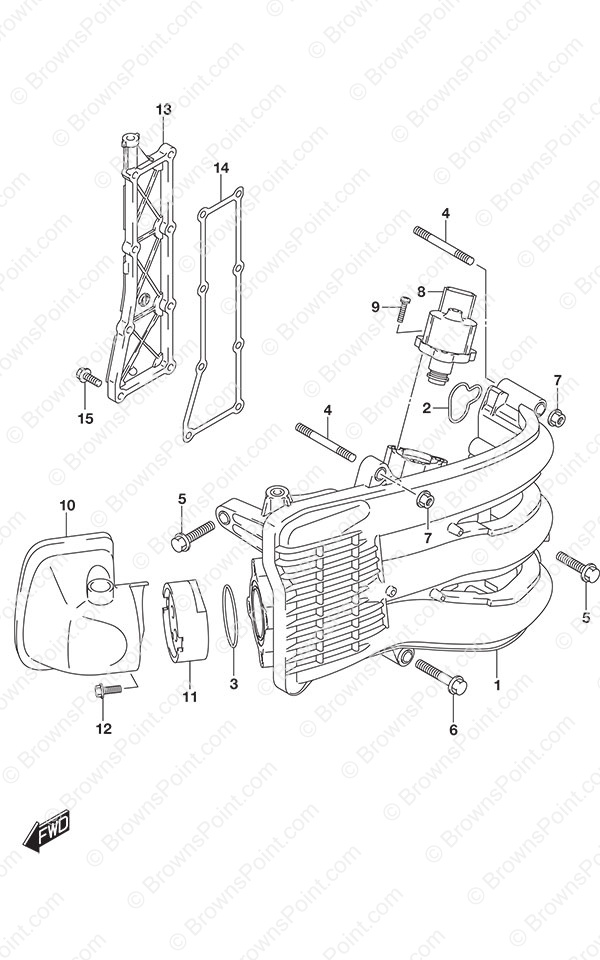

Fig. 124 - Intake Manifold/Silencer/Exhaust Cover

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 13110-88L00 Intake Manifold 1 $ 496.35
2 13119-88L00 Intake Manifold Gasket 3 $ 13.07
3 13125-88L00 Throttle Body Gasket 1 $ 15.80
4 01421-08607 STUD BOLT 2 $ 6.16
5 01550-08307 BOLT 6 $ 3.59
6 01550-08407 BOLT 8 X 40 1 $ 3.48
7 08316-10087 Nut 2 $ 2.27
8 18137-88L01 Replaced by 18137-88L02 1 $ 298.54

Not Available

9 02112-34167 SCREW 3 $ 2.14
10 13810-88L00 Silencer 1 $ 65.00
11 13820-88L00 Silencer Holder 1 $ 33.28

Not Available

12 01550-06127 BOLT 1 $ 2.33
13 14141-88L00 Exhaust Cover 1 $ 87.73

Not Available

14 14151-88L00 Exhaust Cover Gasket 1 $ 8.36
15 01550-06207 BOLT 8 $ 2.33

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
