Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

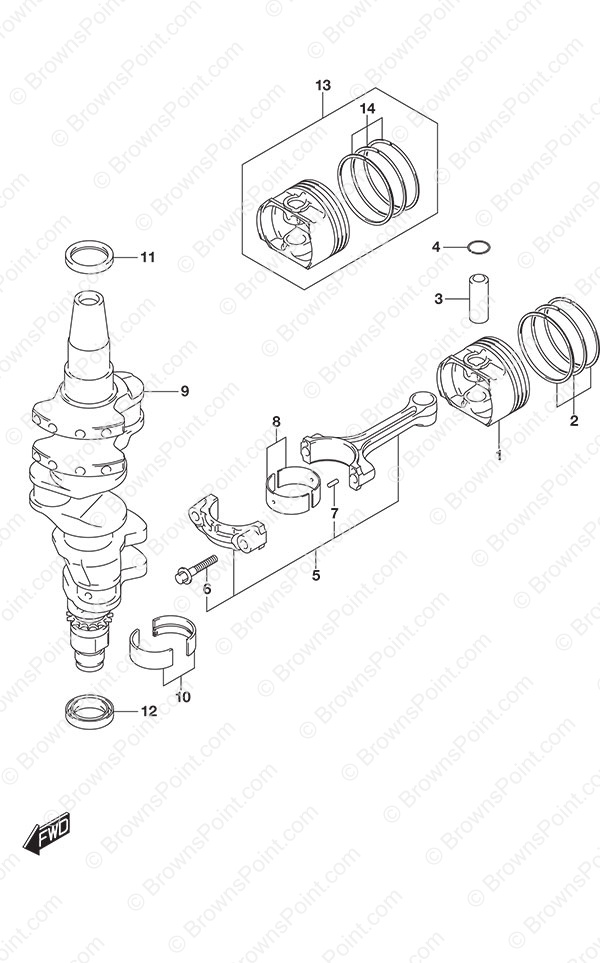

Fig. 116 - Crankshaft

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 12111-88L00 Piston 3 $ 69.51
2 12140-88L00 Replaced by 12140-88L01 3 $ 43.38

Not Available

3 12151-54A50 Piston Pin 3 $ 11.96
4 09381-18002 Piston Pin Circlip 6 $ 1.44
5 12160-88L01 Connecting Rod Assembly 3 $ 126.51
6 12163-69J00 Connecting Rod Bolt 6 $ 2.65
7 04221-04089 PIN 4X8 6 $ 1.11
8-1 12100-51810-0A0 Connrod Bearing Set (Green) 3 $ 21.11
8-2 12100-51810-0B0 Connrod Bearing Set (Black) 3 $ 21.11
8-3 12100-51810-0C0 Connrod Bearing Set (Non) 3 $ 21.11
8-4 12100-51810-0D0 Connrod Bearing Set (Yellow) 3 $ 21.11
8-5 12100-51810-0E0 Connrod Bearing Set (Blue) 3 $ 16.39

Not Available

9 12220-88L00 Crankshaft 1 $ 1,177.28
10-1 12340-75FA0-0A0 Crankshaft Bearing Set (Green) 4 $ 25.89

Not Available

10-2 12340-75FA0-0B0 Crankshaft Bearing Set (Black) 4 $ 23.26
10-3 12340-75F00-0C0 Crankshaft Bearing Set (Non) 4 $ 23.26
10-4 12340-75F00-0D0 Crankshaft Bearing Set (Yellow) 4 $ 23.26
10-5 12340-75F00-0E0 Discontinued 4 $ 18.06

Not Available

11 09283-37005 Oil Seal (36.5x49x6) 1 $ 20.04
12 12281-87J00 Oil Seal (39.3x44x7) 1 $ 16.42
13 12100-88L01-050 Piston & Ring Set (OS:0.50) 3 $ 134.12
Optional
14 12140-88L00-050 Piston Ring Set (OS:0.50) (NLA) 3 $ 43.38

Not Available

Optional

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
