Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

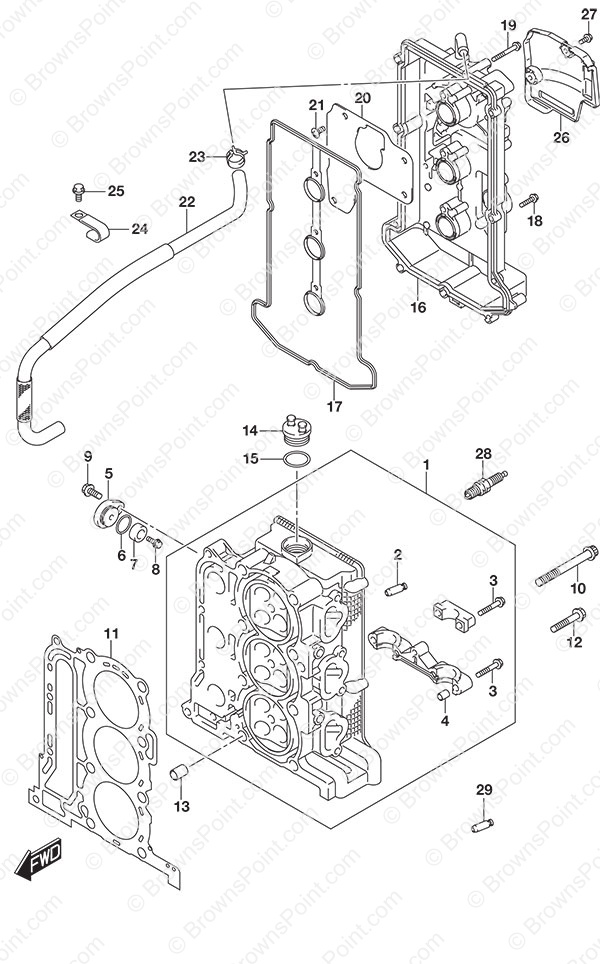

Fig. 111 - Cylinder Head

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 11100-88L20 HEAD ASSY,CYLIN 1 $ 1,568.97
Requires Ref# 30
2 11115-73G01-001 Valve Guide 12 $ 27.40
3 09103-06266 Bolt (6x40) 17 $ 2.21
4 09206-08001 Knock Pin (8x11) 14 $ 1.78
5 11261-93J00 Protection Anode Cover 2 $ 16.29
6 09280-22019 O-Ring 2 $ 2.38
7-1 55321-87J01 Aluminum Anode 2 $ 7.36
7-2 55321-87J11 Magnesium Anode 1 $ 13.01
Opt: Fresh Water Use Only
8 09103-06281 Bolt (6x14) 2 $ 2.99
9 01550-08207 BOLT 2 $ 2.74
10 11119-87J00 Cylinder Head Bolt 8 $ 7.49
11 11141-88L00 Cylinder Head Gasket 1 $ 70.74
12 01550-08457 BOLT 4 $ 3.48
13 04211-13189 PIN 2 $ 2.21
14 11382-99E00 Oil Filler Cap 1 $ 7.28
15 09280-26006 O-Ring 1 $ 2.80
16 11170-88L10 Cylinder Head Cover 1 $ 310.34
17 11189-88L00 Cylinder Head Cover Gasket 1 $ 24.69
18 01547-06257 BOLT 6X25 9 $ 2.04
19 01547-06457 BOLT 6X45 3 $ 2.33
20 11173-88L00 Breather Plate (NLA) 1 $ 8.69
21 02142-0612A SCREW 4 $ 1.38
22 11174-88L00 Breather Hose 1 $ 23.15
23 09401-15414 Clip 2 $ 2.34
24 09403-17303 Clamp (NLA) 2 $ 2.29

Not Available

25 01550-06127 BOLT 2 $ 2.33
26 11194-88L10 Fuel Hose Guard 1 $ 18.49
27 01550-06167 BOLT 2 $ 2.33
28 09482-00446 NGK DCPR6E Spark Plug 3 $ 3.57
NGK
29 11115-73G01-001 Valve Guide 4 $ 27.40
Optional
30 11382-93J00 Oil Filler Cap 1 $ 5.26
Not Shown

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
