Suzuki DF 6 Parts Listings - 2015
S/N 00602F-510001 to 00602F-51XXXX

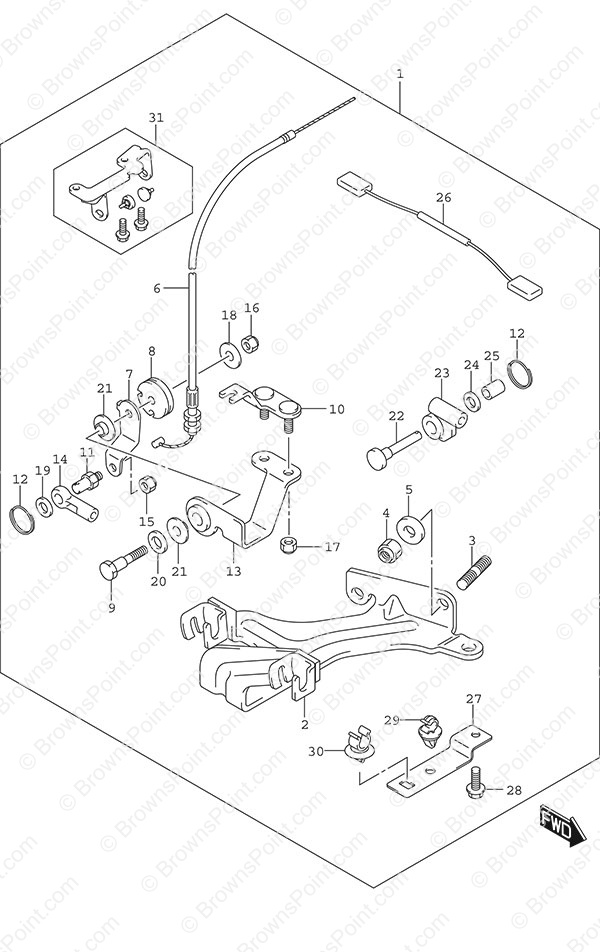

Fig. 514 - Opt: Remocon Parts Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67101-91J02 R/CON & STOPPER
SKU: 67101-91J02 Weight: 0.000000 Brand: Price: $ 227.11 |
R/CON & STOPPER | 1 | $ 227.11 | ||
| 2 | 67110-91J00 Remocon Attachment
SKU: 67110-91J00 Weight: 0.100000 Brand: Price: $ 109.92 |
Remocon Attachment | 1 | $ 109.92 | ||
| 3 | 09108-08130 Stud Bolt (8x20)
SKU: 09108-08130 Weight: 0.200000 Brand: Price: $ 5.86 |
Stud Bolt (8x20) | 2 | $ 5.86 | ||
| 4 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.79 |
Nut | 2 | $ 5.79 | ||
| 5 | 29162-93J10 Lock Washer
SKU: 29162-93J10 Weight: 0.100000 Brand: Price: $ 1.74 |
Lock Washer | 2 | $ 1.74 | ||
| 6 | 63610-91J11 Throttle Cable Assembly
SKU: 63610-91J11 Weight: 0.250000 Brand: Price: $ 19.07 |
Throttle Cable Assembly | 1 | $ 19.07 | ||
| 7 | 67412-91J00 Remocon Throttle Lever
SKU: 67412-91J00 Weight: 0.100000 Brand: Price: $ 13.35 |
Remocon Throttle Lever | 1 | $ 13.35 | ||
| 8 | 67415-91J00 Remocon Throttle Drum
SKU: 67415-91J00 Weight: 0.100000 Brand: Price: $ 27.58 |
Remocon Throttle Drum | 1 | $ 27.58 | ||
| 9 | 67416-91J00 Remocon Throttle Bolt
SKU: 67416-91J00 Weight: 0.100000 Brand: Price: $ 23.02 |
Remocon Throttle Bolt | 1 | $ 23.02 | ||
| 10 | 67430-91J00 Throttle Cable Guide
SKU: 67430-91J00 Weight: 0.100000 Brand: Price: $ 27.84 |
Throttle Cable Guide | 1 | $ 27.84 | ||
| 11 | 67447-91J10 Throttle Cable Bolt
SKU: 67447-91J10 Weight: 0.100000 Brand: Price: $ 17.08 |
Throttle Cable Bolt | 1 | $ 17.08 | ||
| 12 | 67448-91J00 Remocon Cable Stopper
SKU: 67448-91J00 Weight: 0.060000 Brand: Price: $ 7.53 |
Remocon Cable Stopper | 2 | $ 7.53 | ||
| 13 | 67460-91J00 Remocon Throttle Bracket
SKU: 67460-91J00 Weight: 0.100000 Brand: Price: $ 46.41 |
Remocon Throttle Bracket | 1 | $ 46.41 | ||
| 14 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.95 |
Cable Connector | 1 | $ 5.95 | ||
| 15 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.99 |
Nut (6mm) | 1 | $ 1.99 | ||
| 16 | 09159-06079 Nut
SKU: 09159-06079 Weight: 0.250000 Brand: Price: $ 3.01 |
Nut | 1 | $ 3.01 | ||
| 17 | 09159-06079 Nut
SKU: 09159-06079 Weight: 0.250000 Brand: Price: $ 3.01 |
Nut | 2 | $ 3.01 | ||
| 18 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 1 | $ 2.64 | ||
| 19 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.89 |
Washer (8.5x16x1.2) | 1 | $ 1.89 | ||
| 20 | 09164-08017 Wave Washer
SKU: 09164-08017 Weight: 0.060000 Brand: Price: $ 2.55 |
Wave Washer | 1 | $ 2.55 | ||
| 21 | 09306-08002 Bushing (NLA)
SKU: 09306-08002 Weight: 0.100000 Brand: Price: $ 0.95 |
Bushing (NLA) | 2 | $ 0.95 | ||
| 22 | 67447-91J00 Clutch Cable Pin (NLA)
SKU: 67447-91J00 Weight: 0.100000 Brand: Price: $ 15.67 |
Clutch Cable Pin (NLA) | 1 | $ 15.67 | ||
| 23 | 67467-93E01 Cable Connector
SKU: 67467-93E01 Weight: 0.060000 Brand: Price: $ 8.39 |
Cable Connector | 1 | $ 8.39 | ||
| 24 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.67 |
Washer (6.5x13x1.0) | 1 | $ 1.67 | ||
| 25 | 09180-06097 Spacer
SKU: 09180-06097 Weight: 0.100000 Brand: Price: $ 6.64 |
Spacer | 1 | $ 6.64 | ||
| 26 | 36831-91J00 Stop Switch Lead
SKU: 36831-91J00 Weight: 0.100000 Brand: Price: $ 12.30 |
Stop Switch Lead | 1 | $ 12.30 | ||
| 27 | 65791-91J00 Hose & Cable Clamp Bracket
SKU: 65791-91J00 Weight: 0.100000 Brand: Price: $ 10.94 |
Hose & Cable Clamp Bracket | 1 | $ 10.94 | ||
| 28 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.27 |
Bolt (6x12) | 1 | $ 2.27 | ||
| 29 | 09403-07325 Clamp
SKU: 09403-07325 Weight: 0.100000 Brand: Price: $ 3.37 |
Clamp | 1 | $ 3.37 | ||
| 30 | 09403-12314 Clamp (NLA)
SKU: 09403-12314 Weight: 0.100000 Brand: Price: $ 1.71 |
Clamp (NLA) | 1 | $ 1.71 | ||
| 31 | 67150-91J00 Stopper Parts Set
SKU: 67150-91J00 Weight: 1.000000 Brand: Price: $ 0.00 |
Stopper Parts Set | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
