Suzuki DT 140 Parts Listings 1984 to 1985

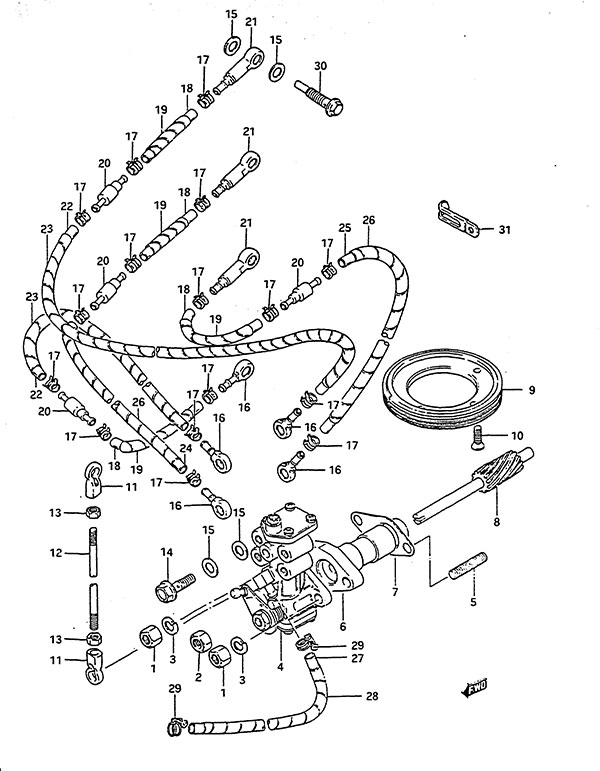

Fig. 8 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 09140-06013 Nut (NLA)
SKU: 09140-06013 Weight: 0.100000 Brand: Price: $ 0.66 |
Nut (NLA) | 2 | $ 0.66 | 1984 | |
| 1-2 | 09140-06013 Nut (NLA)
SKU: 09140-06013 Weight: 0.100000 Brand: Price: $ 0.66 |
Nut (NLA) | 1 | $ 0.66 | 1985 | |
| 2 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 1 | $ 1.95 | 1985 | |
| 3 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.57 |
Lock Washer | 2 | $ 1.57 | ||
| 4-1 | 16100-94505 Oil Pump Assembly (NLA)
SKU: 16100-94505 Weight: 0.100000 Brand: Price: $ 73.22 |
Oil Pump Assembly (NLA) | 1 | $ 73.22 | S/N 406620 Older | |
| 4-2 | 16100-94506 Oil Pump Assembly (NLA)
SKU: 16100-94506 Weight: 0.100000 Brand: Price: $ 77.02 |
Oil Pump Assembly (NLA) | 1 | $ 77.02 | S/N 506621 Newer | |
| 5 | 01421-06307 BOLTSTUD
SKU: 01421-06307 Weight: 0.200000 Brand: Price: $ 2.77 |
BOLTSTUD | 2 | $ 2.77 | ||
| 6 | 16340-94501 Driven Gear Retainer (NLA)
SKU: 16340-94501 Weight: 0.100000 Brand: Price: $ 21.84 |
Driven Gear Retainer (NLA) | 1 | $ 21.84 | ||
| 7 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 8 | 16331-94500 Oil Pump Driven Gear (NLA)
SKU: 16331-94500 Weight: 0.100000 Brand: Price: $ 27.95 |
Oil Pump Driven Gear (NLA) | 1 | $ 27.95 | ||
| 9 | 16321-94501 Drive Gear (NLA)
SKU: 16321-94501 Weight: 0.100000 Brand: Price: $ 100.61 |
Drive Gear (NLA) | 1 | $ 100.61 | ||
| 10 | 02122-0630B SCREW
SKU: 02122-0630B Weight: 0.125000 Brand: Price: $ 2.17 |
SCREW | 3 | $ 2.17 | ||
| 11 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.68 |
Connector | 2 | $ 4.68 | ||
| 12 | 16411-94502 Oil Pump Control Rod (NLA)
SKU: 16411-94502 Weight: 0.100000 Brand: Price: $ 5.30 |
Oil Pump Control Rod (NLA) | 1 | $ 5.30 | ||
| 13 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.74 |
Nut | 2 | $ 2.74 | ||
| 14 | 09360-06012 Union Bolt
SKU: 09360-06012 Weight: 0.100000 Brand: Price: $ 3.62 |
Union Bolt | 4 | $ 3.62 | ||
| 15 | 09168-06023 Gasket
SKU: 09168-06023 Weight: 0.060000 Brand: Price: $ 2.15 |
Gasket | 16 | $ 2.15 | ||
| 16 | 09363-02002 Union
SKU: 09363-02002 Weight: 0.060000 Brand: Price: $ 8.80 |
Union | 5 | $ 8.80 | ||
| 17 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.23 |
Clamp | 16 | $ 2.23 | ||
| 18 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 4 | $ 6.08 | L:600->50 | |
| 19 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 4 | $ 8.74 | ||
| 20 | 16710-94531 Check Valve (NLA)
SKU: 16710-94531 Weight: 0.060000 Brand: Price: $ 16.63 |
Check Valve (NLA) | 4 | $ 16.63 | ||
| 21 | 16710-94502 Check Valve (NLA)
SKU: 16710-94502 Weight: 0.060000 Brand: Price: $ 11.89 |
Check Valve (NLA) | 3 | $ 11.89 | ||
| 22 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 2 | $ 6.08 | L:600->270 | |
| 23 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 2 | $ 8.74 | ||
| 24 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | L:600->160 | |
| 25 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 2 | $ 6.08 | L:600->175 | |
| 26 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 1 | $ 8.74 | ||
| 27 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | L:600->330 | |
| 28 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 1 | $ 8.74 | ||
| 29 | 09400-10302 Oil Hose Clamp
SKU: 09400-10302 Weight: 0.100000 Brand: Price: $ 3.50 |
Oil Hose Clamp | 2 | $ 3.50 | ||
| 30-1 | 16715-94500 Oil Nozzle Bolt (NLA)
SKU: 16715-94500 Weight: 0.100000 Brand: Price: $ 3.93 |
Oil Nozzle Bolt (NLA) | 4 | $ 3.93 | 1984 | |
| 30-2 | 16715-94501 Oil Nozzle Bolt (NLA)
SKU: 16715-94501 Weight: 0.100000 Brand: Price: $ 3.93 |
Oil Nozzle Bolt (NLA) | 4 | $ 3.93 | 1985 | |
| 31 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 2 | $ 2.06 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
