Suzuki DT 4 Parts Listings 1997 to 1998

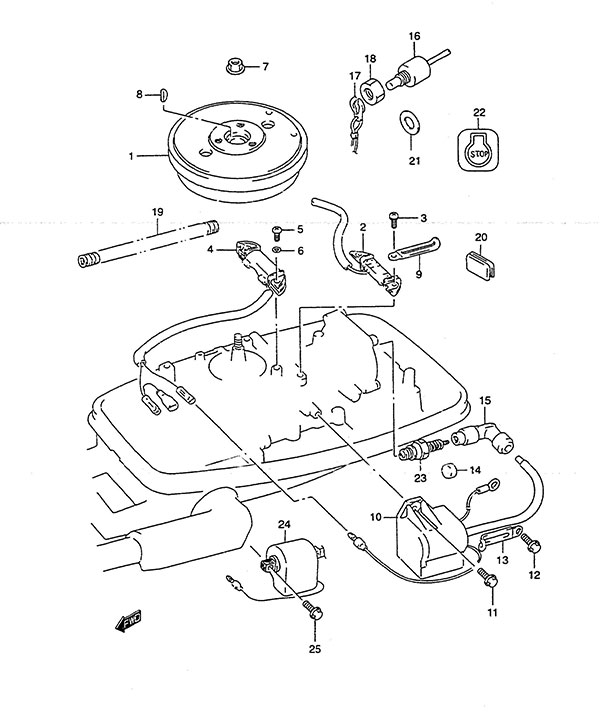

Fig. 15 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32102-98620 Flywheel (NLA)
SKU: 32102-98620 Weight: 10.000000 Brand: Price: $ 167.55 |
Flywheel (NLA) | 1 | $ 167.55 | 1997 | |
| 1-2 | 32102-98601 Flywheel (NLA)
SKU: 32102-98601 Weight: 10.000000 Brand: Price: $ 185.20 |
Flywheel (NLA) | 1 | $ 185.20 | 1998 | |
| 2 | 32140-98611 Ignition Coil
SKU: 32140-98611 Weight: 0.360000 Brand: Price: $ 106.22 |
Ignition Coil | 1 | $ 106.22 | ||
| 3 | 02112-3520B SCREW
SKU: 02112-3520B Weight: 0.200000 Brand: Price: $ 2.52 |
SCREW | 2 | $ 2.52 | ||
| 4 | 32200-98600 Lighting Coil
SKU: 32200-98600 Weight: 0.100000 Brand: Price: $ 20.66 |
Lighting Coil | 1 | $ 20.66 | ||
| 5 | 02112-0520B SCREW
SKU: 02112-0520B Weight: 0.100000 Brand: Price: $ 1.95 |
SCREW | 2 | $ 1.95 | ||
| 6 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.95 |
Lock Washer | 2 | $ 1.95 | ||
| 7 | 08316-1010B Nut
SKU: 08316-1010B Weight: 0.200000 Brand: Price: $ 2.82 |
Nut | 1 | $ 2.82 | ||
| 8 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 2.02 |
Woodruff Key | 1 | $ 2.02 | ||
| 10 | 33410-98620 Ignition Coil Assembly (NLA)
SKU: 33410-98620 Weight: 0.100000 Brand: Price: $ 132.30 |
Ignition Coil Assembly (NLA) | 1 | $ 132.30 | 1997 | |
| 11 | 09103-06050 Bolt (6x16) (NLA)
SKU: 09103-06050 Weight: 0.100000 Brand: Price: $ 0.49 |
Bolt (6x16) (NLA) | 1 | $ 0.49 | 1997 | |
| 12 | 09103-06049 Bolt (6x12) (NLA)
SKU: 09103-06049 Weight: 0.100000 Brand: Price: $ 0.72 |
Bolt (6x12) (NLA) | 1 | $ 0.72 | ||
| 13 | 09404-06036 Clamp (L:80)
SKU: 09404-06036 Weight: 0.100000 Brand: Price: $ 1.83 |
Clamp (L:80) | 1 | $ 1.83 | ||
| 14 | 09329-06002 Cushion (NLA)
SKU: 09329-06002 Weight: 0.100000 Brand: Price: $ 1.38 |
Cushion (NLA) | 1 | $ 1.38 | ||
| 15 | 33510-98601 Spark Plug Cap
SKU: 33510-98601 Weight: 0.060000 Brand: Price: $ 24.03 |
Spark Plug Cap | 1 | $ 24.03 | ||
| 16 | 37830-89E04 Stop Switch Assembly
SKU: 37830-89E04 Weight: 0.180000 Brand: Price: $ 52.43 |
Stop Switch Assembly | 1 | $ 52.43 | ||
| 17 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 20.38 |
Stop Switch Lanyard | 1 | $ 20.38 | ||
| 18 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.97 |
Nut | 1 | $ 5.97 | ||
| 19 | 33446-98E20 High Tension Protect Tube (NLA)
SKU: 33446-98E20 Weight: 0.100000 Brand: Price: $ 2.96 |
High Tension Protect Tube (NLA) | 1 | $ 2.96 | ||
| 20 | 39669-94400 Lower Cover Plug
SKU: 39669-94400 Weight: 0.100000 Brand: Price: $ 4.47 |
Lower Cover Plug | 1 | $ 4.47 | ||
| 21 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.23 |
Washer (12.5x23x1.0) | 1 | $ 3.23 | ||
| 22 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.24 |
Stop Label | 1 | $ 1.24 | ||
| 23 | 09482-00359 NGK BPR5HS Spark Plug
SKU: 09482-00359 Weight: 0.187500 Brand: Price: $ 3.83 |
NGK BPR5HS Spark Plug | 1 | $ 3.83 | ||
| 24 | 33410-98600 Ignition Coil Assembly (NLA)
SKU: 33410-98600 Weight: 0.100000 Brand: Price: $ 37.64 |
Ignition Coil Assembly (NLA) | 1 | $ 37.64 | 1998 | |
| 25 | 09103-06048 Bolt (6x20) (NLA)
SKU: 09103-06048 Weight: 0.060000 Brand: Price: $ 1.06 |
Bolt (6x20) (NLA) | 2 | $ 1.06 | 1998 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
