Suzuki DT 8c Parts Listings 1988 to 1997

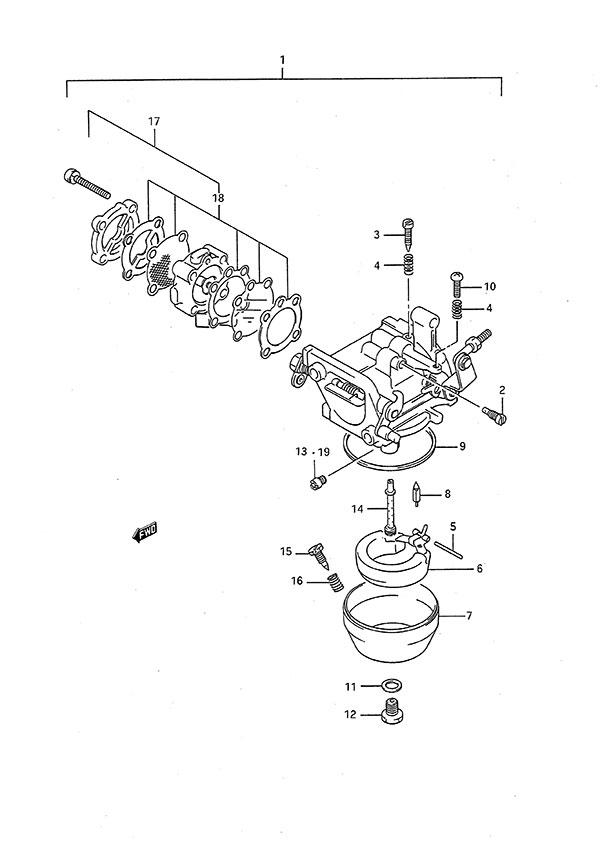

Fig. 4 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-92D52 Carburetor Assembly (NLA)
SKU: 13200-92D52 Weight: 1.250000 Brand: Price: $ 298.03 |
Carburetor Assembly (NLA) | 1 | $ 298.03 | ||
| 2 | 09492-85001 Pilot Jet #85
SKU: 09492-85001 Weight: 0.060000 Brand: Price: $ 10.07 |
Pilot Jet #85 | 1 | $ 10.07 | ||
| 3 | 13279-90000 Adjuster
SKU: 13279-90000 Weight: 0.060000 Brand: Price: $ 7.09 |
Adjuster | 1 | $ 7.09 | ||
| 4 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 5.12 |
Spring | 1 | $ 5.12 | ||
| 5 | 13254-98100 Float Pin
SKU: 13254-98100 Weight: 0.060000 Brand: Price: $ 3.17 |
Float Pin | 1 | $ 3.17 | ||
| 6 | 13250-98110 Carburetor Float
SKU: 13250-98110 Weight: 0.060000 Brand: Price: $ 20.02 |
Carburetor Float | 1 | $ 20.02 | ||
| 7 | 13245-98110 Float Chamber
SKU: 13245-98110 Weight: 0.100000 Brand: Price: $ 59.51 |
Float Chamber | 1 | $ 59.51 | ||
| 8 | 13371-98100 Needle Valve
SKU: 13371-98100 Weight: 0.060000 Brand: Price: $ 24.16 |
Needle Valve | 1 | $ 24.16 | ||
| 9 | 13251-98100 Float Chamber Gasket
SKU: 13251-98100 Weight: 0.060000 Brand: Price: $ 6.10 |
Float Chamber Gasket | 1 | $ 6.10 | ||
| 10 | 13267-93900 Screw
SKU: 13267-93900 Weight: 0.060000 Brand: Price: $ 3.66 |
Screw | 1 | $ 3.66 | ||
| 11 | 13343-98100 Float Chamber Bolt Gasket
SKU: 13343-98100 Weight: 0.060000 Brand: Price: $ 2.37 |
Float Chamber Bolt Gasket | 1 | $ 2.37 | ||
| 12 | 13613-98100 Float Chamber Bolt
SKU: 13613-98100 Weight: 0.125000 Brand: Price: $ 5.17 |
Float Chamber Bolt | 1 | $ 5.17 | ||
| 13 | 09491-21023 Main Jet #105
SKU: 09491-21023 Weight: 0.060000 Brand: Price: $ 11.84 |
Main Jet #105 | 1 | $ 11.84 | ||
| 14 | 13235-91D00 Main Nozzle
SKU: 13235-91D00 Weight: 0.125000 Brand: Price: $ 27.85 |
Main Nozzle | 1 | $ 27.85 | ||
| 15 | 13616-93900 Adjuster
SKU: 13616-93900 Weight: 0.060000 Brand: Price: $ 13.82 |
Adjuster | 1 | $ 13.82 | ||
| 16 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 5.12 |
Spring | 1 | $ 5.12 | ||
| 17 | 15100-92D11 Fuel Pump Assembly
SKU: 15100-92D11 Weight: 0.150000 Brand: Price: $ 84.82 |
Fuel Pump Assembly | 1 | $ 84.82 | ||
| 18 | 15170-93911 Fuel Pump Diaphragm Set
SKU: 15170-93911 Weight: 0.125000 Brand: Price: $ 32.10 |
Fuel Pump Diaphragm Set | 1 | $ 32.10 | ||
| 19-1 | 09491-20025 Main Jet #102.5
SKU: 09491-20025 Weight: 0.100000 Brand: Price: $ 18.02 |
Main Jet #102.5 | 1 | $ 18.02 | Optional | |
| 19-2 | 09491-97004 Main Jet #97.5
SKU: 09491-97004 Weight: 0.060000 Brand: Price: $ 19.81 |
Main Jet #97.5 | 1 | $ 19.81 | Optional | |
| 19-3 | 09491-95008 Main Jet #95
SKU: 09491-95008 Weight: 0.100000 Brand: Price: $ 8.69 |
Main Jet #95 | 1 | $ 8.69 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
