Suzuki DT 115 Parts Listings 1986 to 1997

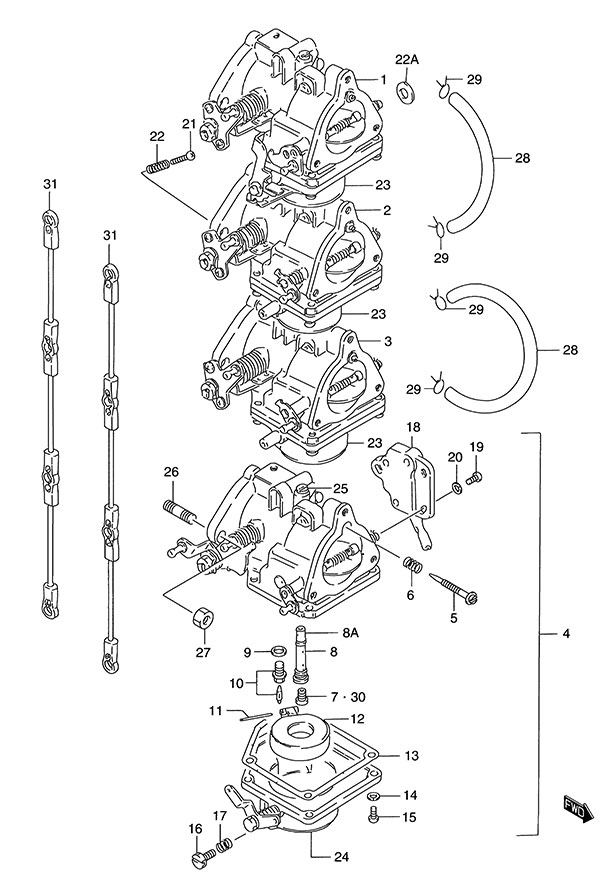

Fig. 6 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13201-94670 Top Carburetor Assembly (NLA)
SKU: 13201-94670 Weight: 0.100000 Brand: Price: $ 317.83 |
Top Carburetor Assembly (NLA) | 1 | $ 317.83 | 1986 to 1988 | |
| 1-2 | 13201-946A4 Top Carburetor Assembly (NLA)
SKU: 13201-946A4 Weight: 1.000000 Brand: Price: $ 294.08 |
Top Carburetor Assembly (NLA) | 1 | $ 294.08 | 1989 to 1997 | |
| 2-1 | 13202-94682 2nd Carburetor Assembly (NLA)
SKU: 13202-94682 Weight: 1.000000 Brand: Price: $ 285.53 |
2nd Carburetor Assembly (NLA) | 1 | $ 285.53 | 1986 to 1992 | |
| 2-2 | 13202-946A3 2nd Carburetor Assembly
SKU: 13202-946A3 Weight: 1.000000 Brand: Price: $ 545.15 |
2nd Carburetor Assembly | 1 | $ 545.15 | 1993 to 1997 | |
| 3 | 13203-946A3 3rd Carburetor Assembly (NLA)
SKU: 13203-946A3 Weight: 1.400000 Brand: Price: $ 292.48 |
3rd Carburetor Assembly (NLA) | 1 | $ 292.48 | ||
| 4-1 | 13204-94670 4th Carburetor Assembly (NLA)
SKU: 13204-94670 Weight: 0.100000 Brand: Price: $ 317.83 |
4th Carburetor Assembly (NLA) | 1 | $ 317.83 | 1986 to 1988 | |
| 4-2 | 13204-946A3 4th Carburetor Assembly (NLA)
SKU: 13204-946A3 Weight: 1.600000 Brand: Price: $ 432.93 |
4th Carburetor Assembly (NLA) | 1 | $ 432.93 | 1989 to 1997 | |
| 5 | 13269-93311 Pilot Air Screw
SKU: 13269-93311 Weight: 0.060000 Brand: Price: $ 8.57 |
Pilot Air Screw | 4 | $ 8.57 | ||
| 6 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 5.15 |
Air Screw Spring | 4 | $ 5.15 | ||
| 4-1 | 09491-26019 Main Jet #132.5
SKU: 09491-26019 Weight: 0.060000 Brand: Price: $ 16.38 |
Main Jet #132.5 | 4 | $ 16.38 | ||
| 7-2 | 09491-27014 Main Jet #137.5
SKU: 09491-27014 Weight: 0.060000 Brand: Price: $ 11.80 |
Main Jet #137.5 | 4 | $ 11.80 | S/N 651200 Newer | |
| 8-1 | 13235-94350 Main Nozzle
SKU: 13235-94350 Weight: 0.100000 Brand: Price: $ 25.04 |
Main Nozzle | 4 | $ 25.04 | 1986 to 1988 | |
| 8-2 | 13236-96300 Main Nozzle
SKU: 13236-96300 Weight: 0.125000 Brand: Price: $ 25.10 |
Main Nozzle | 4 | $ 25.10 | 1989 to 1997 | |
| 8A | 13237-94400 Upper Nozzle
SKU: 13237-94400 Weight: 0.060000 Brand: Price: $ 3.59 |
Upper Nozzle | 4 | $ 3.59 | ||
| 9 | 13392-58600 Valve Seat Gasket
SKU: 13392-58600 Weight: 0.060000 Brand: Price: $ 2.02 |
Valve Seat Gasket | 4 | $ 2.02 | ||
| 10 | 13370-28110 Needle Valve Assembly
SKU: 13370-28110 Weight: 0.060000 Brand: Price: $ 51.85 |
Needle Valve Assembly | 4 | $ 51.85 | ||
| 11 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.45 |
Float Pin | 4 | $ 3.45 | ||
| 12 | 13250-93012 Carburetor Float
SKU: 13250-93012 Weight: 0.060000 Brand: Price: $ 20.87 |
Carburetor Float | 4 | $ 20.87 | ||
| 13 | 13251-93320 Float Chamber Gasket
SKU: 13251-93320 Weight: 0.060000 Brand: Price: $ 8.86 |
Float Chamber Gasket | 4 | $ 8.86 | ||
| 14 | 09162-05202 Lock Washer (NLA)
SKU: 09162-05202 Weight: 0.100000 Brand: Price: $ 0.70 |
Lock Washer (NLA) | 16 | $ 0.70 | ||
| 15 | 02112-05207 SCREW
SKU: 02112-05207 Weight: 0.060000 Brand: Price: $ 2.08 |
SCREW | 16 | $ 2.08 | ||
| 16 | 13616-94500 Drain Bolt
SKU: 13616-94500 Weight: 0.060000 Brand: Price: $ 7.95 |
Drain Bolt | 4 | $ 7.95 | ||
| 17 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 5.15 |
Air Screw Spring | 4 | $ 5.15 | ||
| 18-1 | 37810-94612 Throttle Valve Sensor Assembly (NLA)
SKU: 37810-94612 Weight: 0.180000 Brand: Price: $ 62.55 |
Throttle Valve Sensor Assembly (NLA) | 1 | $ 62.55 | 4th Carb 1986 to 1988 | |
| 18-2 | 37810-95606 Throttle Valve Sensor Assembly
SKU: 37810-95606 Weight: 0.180000 Brand: Price: $ 232.07 |
Throttle Valve Sensor Assembly | 1 | $ 232.07 | 4th Carb 1989 to 1997 | |
| 19 | 02112-0416A SCREW
SKU: 02112-0416A Weight: 0.125000 Brand: Price: $ 1.30 |
SCREW | 2 | $ 1.30 | ||
| 20 | 13606-18E00 Washer
SKU: 13606-18E00 Weight: 0.100000 Brand: Price: $ 4.32 |
Washer | 2 | $ 4.32 | ||
| 21 | 13267-93900 Screw
SKU: 13267-93900 Weight: 0.060000 Brand: Price: $ 3.41 |
Screw | 1 | $ 3.41 | ||
| 22 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.77 |
Spring | 1 | $ 4.77 | ||
| 22A | 13589-95210 Washer
SKU: 13589-95210 Weight: 0.100000 Brand: Price: $ 3.47 |
Washer | 4 | $ 3.47 | ||
| 23 | 13240-94600 Float Chamber Assembly
SKU: 13240-94600 Weight: 0.200000 Brand: Price: $ 70.55 |
Float Chamber Assembly | 3 | $ 70.55 | Carb #1, #2 #3 | |
| 24 | 13240-94620 Float Chamber Assembly
SKU: 13240-94620 Weight: 0.200000 Brand: Price: $ 55.48 |
Float Chamber Assembly | 1 | $ 55.48 | Carb #4 | |
| 25-1 | 09492-82002 Pilot Jet #82.5 (NLA)
SKU: 09492-82002 Weight: 0.100000 Brand: Price: $ 11.24 |
Pilot Jet #82.5 (NLA) | 4 | $ 11.24 | 1986 to 1988 | |
| 25-2 | 09492-65002 Pilot Jet #65
SKU: 09492-65002 Weight: 0.060000 Brand: Price: $ 14.55 |
Pilot Jet #65 | 4 | $ 14.55 | 1989 to 1997 | |
| 26 | 01411-08207 Stud Bolt (NLA)
SKU: 01411-08207 Weight: 0.100000 Brand: Price: $ 2.03 |
Stud Bolt (NLA) | 8 | $ 2.03 | ||
| 27 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 8 | $ 2.38 | ||
| 28-1 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 8.00 |
Hose (5x9x600) | 1 | $ 8.00 | Upper Hose L:600->135 | |
| 28-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 8.00 |
Hose (5x9x600) | 1 | $ 8.00 | Lower Hose L:600->270 | |
| 29 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.88 |
Clip | 4 | $ 1.88 | ||
| 30-1 | 09491-25014 Main Jet #125
SKU: 09491-25014 Weight: 0.060000 Brand: Price: $ 15.83 |
Main Jet #125 | 4 | $ 15.83 | Optional | |
| 30-2 | 09491-26016 Main Jet #130
SKU: 09491-26016 Weight: 0.060000 Brand: Price: $ 16.07 |
Main Jet #130 | 4 | $ 16.07 | Optional | |
| 30-3 | 09491-27007 Main Jet #137.5 (NLA)
SKU: 09491-27007 Weight: 0.100000 Brand: Price: $ 7.34 |
Main Jet #137.5 (NLA) | 4 | $ 7.34 | Optional | |
| 31 | 13510-94600 Throttle Rod Assembly (NLA)
SKU: 13510-94600 Weight: 0.100000 Brand: Price: $ 13.39 |
Throttle Rod Assembly (NLA) | 2 | $ 13.39 | ||
| 32 | 13910-94701 Carburetor Repair Kit
SKU: 13910-94701 Weight: 0.060000 Brand: Price: $ 33.54 |
Carburetor Repair Kit | 4 | $ 33.54 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
