Suzuki DF 90A Parts Listings - 2013
S/N 09003F-310001 to 09003F-31XXXX

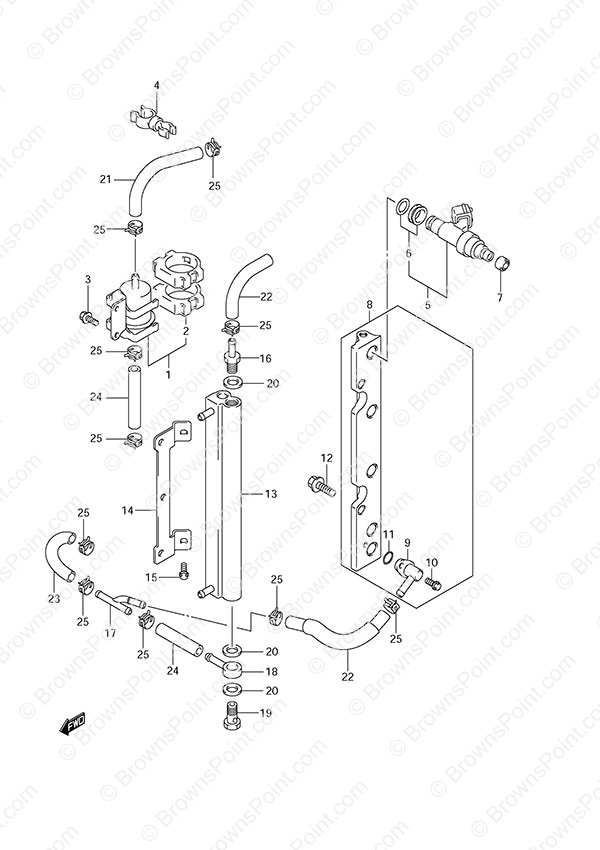

Fig. 13 - Fuel Injector
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15440-87L11 H/P Fuel Filter
SKU: 15440-87L11 Weight: 0.750000 Brand: Price: $ 73.00 |
H/P Fuel Filter | 1 | $ 73.00 | ||
| 2 | 15422-96J01 Fuel Filter Clamp
SKU: 15422-96J01 Weight: 0.060000 Brand: Price: $ 6.63 |
Fuel Filter Clamp | 2 | $ 6.63 | ||
| 3 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 | ||
| 4 | 09408-00233 Clamp (NLA)
SKU: 09408-00233 Weight: 0.100000 Brand: Price: $ 2.80 |
Clamp (NLA) | 1 | $ 2.80 | ||
| 5 | 15710-82K50 Fuel Injector
SKU: 15710-82K50 Weight: 0.250000 Brand: Price: $ 228.25 |
Fuel Injector | 4 | $ 228.25 | ||
| 6 | 15716-65DT0 Grommet Set
SKU: 15716-65DT0 Weight: 0.060000 Brand: Price: $ 19.73 |
Grommet Set | 4 | $ 19.73 | ||
| 7 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 14.35 |
Cushion | 4 | $ 14.35 | ||
| 8 | 15750-87L10 Delivery Pipe
SKU: 15750-87L10 Weight: 1.000000 Brand: Price: $ 181.61 |
Delivery Pipe | 1 | $ 181.61 | ||
| 9 | 15830-87L00 Fuel Main Joint
SKU: 15830-87L00 Weight: 0.250000 Brand: Price: $ 28.83 |
Fuel Main Joint | 1 | $ 28.83 | ||
| 10 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 3.15 |
Bolt (6x14) | 1 | $ 3.15 | ||
| 11 | 09280-08012 O-Ring
SKU: 09280-08012 Weight: 0.100000 Brand: Price: $ 3.93 |
O-Ring | 1 | $ 3.93 | ||
| 12 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.97 |
BOLT | 2 | $ 2.97 | ||
| 13 | 15770-87L00 Fuel Cooler
SKU: 15770-87L00 Weight: 1.000000 Brand: Price: $ 113.37 |
Fuel Cooler | 1 | $ 113.37 | ||
| 14 | 15775-87L00 Fuel Cooler Bracket (NLA)
SKU: 15775-87L00 Weight: 0.500000 Brand: Price: $ 8.85 |
Fuel Cooler Bracket (NLA) | 1 | $ 8.85 | ||
| 15 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 5 | $ 2.45 | ||
| 16 | 15773-90J10 UNION,FUEL HOSE
SKU: 15773-90J10 Weight: 0.000000 Brand: Price: $ 19.18 |
UNION,FUEL HOSE | 1 | $ 19.18 | ||
| 17 | 15830-93J00 3 Way Union
SKU: 15830-93J00 Weight: 0.060000 Brand: Price: $ 17.83 |
3 Way Union | 1 | $ 17.83 | ||
| 18 | 09363-08004 Union
SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 17.27 |
Union | 1 | $ 17.27 | ||
| 19 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 10.32 |
Union Bolt | 1 | $ 10.32 | ||
| 20 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.63 |
Gasket | 3 | $ 3.63 | ||
| 21 | 15681-87L30 Fuel Hose (NLA)
SKU: 15681-87L30 Weight: 0.500000 Brand: Price: $ 28.22 |
Fuel Hose (NLA) | 1 | $ 28.22 | Filter to Cooler | |
| 22 | 15681-87L40 Fuel Hose (NLA)
SKU: 15681-87L40 Weight: 0.500000 Brand: Price: $ 24.43 |
Fuel Hose (NLA) | 1 | $ 24.43 | 3 Way to Delivery Pipe | |
| 23 | 15682-87L20 Fuel Hose
SKU: 15682-87L20 Weight: 0.250000 Brand: Price: $ 20.30 |
Fuel Hose | 1 | $ 20.30 | 3 Way to Separator | |
| 24 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 36.17 |
Hose (7.5x13.5x600) | 2 | $ 36.17 | L:600->60 | |
| 25 | 09401-11425 Clip
SKU: 09401-11425 Weight: 0.060000 Brand: Price: $ 3.58 |
Clip | 10 | $ 3.58 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
