Suzuki DF 350A Parts Listings - 2022
S/N 35001F-240001 to 35001F-24XXXX

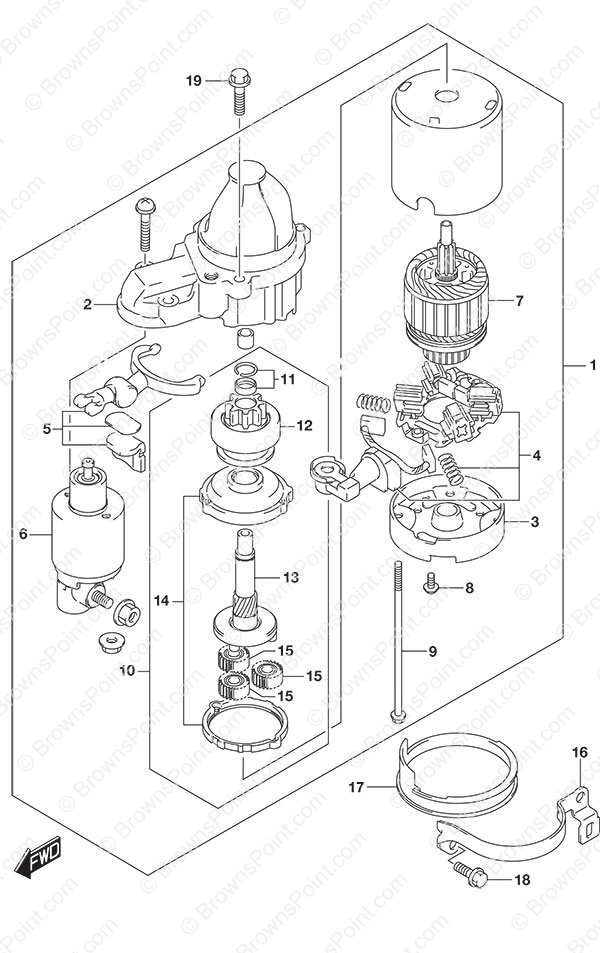

Fig. 301 - Starting Motor

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 31100-98L10 Starter Motor Assembly 1 $ 911.82
2 31150-98L00 Gear Case 1 $ 143.75
3 31170-92J00 Rear Housing 1 $ 24.19
4 31173-98L00 Brush Holder Assembly 1 $ 105.88
5 31191-63J00 Lever Assembly 1 $ 12.15
6 31220-98L10 Switch Assembly 1 $ 221.40
7 31311-63J00 Armature 1 $ 238.32
8 31192-92J00 Screw Set 1 $ 6.44
9 31261-75F10 Through Bolt 2 $ 0.00
10 31340-98L00 Starting Motor Clutch Set 1 $ 360.31
11 31313-86030 Stopper Set 1 $ 0.00
12 31320-98L00 Pinion Assembly 1 $ 215.78
13 31341-98L00 Pinion Shaft 1 $ 105.88

Not Available

14 31343-63J00 Internal Gear 1 $ 0.00
15 31344-63J00 Planetary Gear 3 $ 0.00
16 31912-98L00 Starting Motor Band 1 $ 12.10
17 31918-92J01 Lower Damper 1 $ 7.72
18 01550-0820C BOLT 2 $ 1.68
19 01550-0830C Bolt 2 $ 1.80

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
