Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

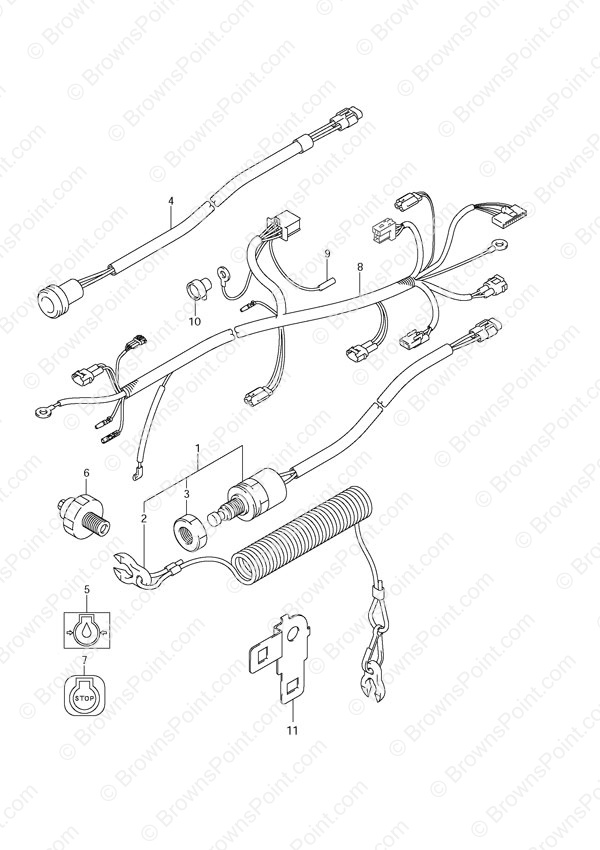

Fig. 42 - Electrical Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37830-94J11 Emergency Switch Assembly
SKU: 37830-94J11 Weight: 0.250000 Brand: Price: $ 57.86 |
Emergency Switch Assembly | 1 | $ 57.86 | ||
| 2 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 20.38 |
Stop Switch Lanyard | 1 | $ 20.38 | ||
| 3 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.97 |
Nut | 1 | $ 5.97 | ||
| 4 | 36360-94J00 Oil Indicator Light
SKU: 36360-94J00 Weight: 0.100000 Brand: Price: $ 41.41 |
Oil Indicator Light | 1 | $ 41.41 | ||
| 5 | 36367-93E00-019 Oil Level Label (NLA)
SKU: 36367-93E00-019 Weight: 0.060000 Brand: Price: $ 2.03 |
Oil Level Label (NLA) | 1 | $ 2.03 | ||
| 6 | 37820-93E11 Oil Pressure Switch
SKU: 37820-93E11 Weight: 0.125000 Brand: Price: $ 25.80 |
Oil Pressure Switch | 1 | $ 25.80 | ||
| 7 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.24 |
Stop Label | 1 | $ 1.24 | ||
| 8 | 36610-94JB0 Wiring Harness Assembly
SKU: 36610-94JB0 Weight: 5.000000 Brand: Price: $ 146.75 |
Wiring Harness Assembly | 1 | $ 146.75 | ||
| 9 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.35 |
Resin Terminal | 1 | $ 1.35 | ||
| 10 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.75 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.75 | ||
| 11 | 36617-94JA0 Joint Connector Bracket (NLA)
SKU: 36617-94JA0 Weight: 0.100000 Brand: Price: $ 25.87 |
Joint Connector Bracket (NLA) | 1 | $ 25.87 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
