Suzuki DF 350A Parts Listings - 2019
S/N 35001F-910001 to 35001F-91XXXX

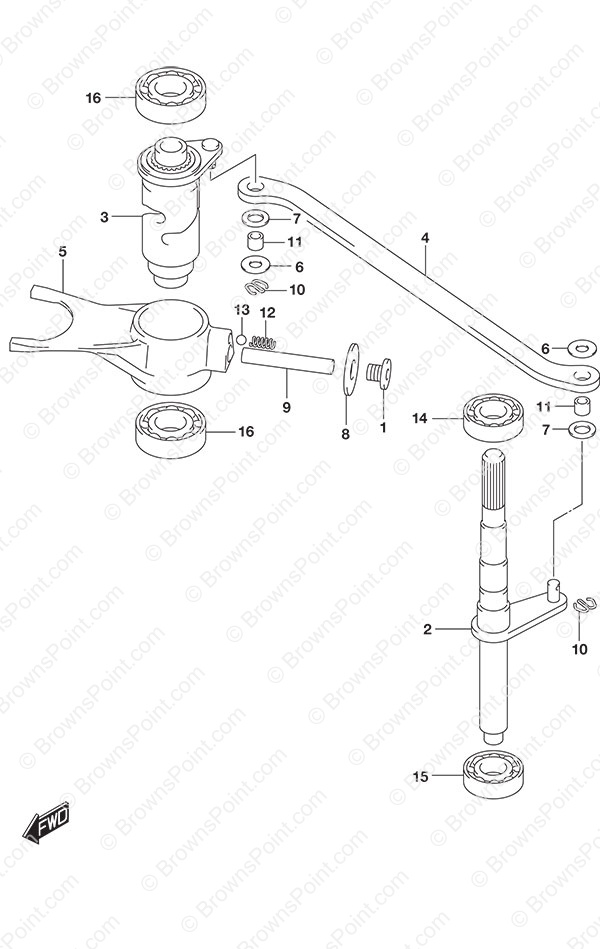

Fig. 206 - Clutch Rod

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 11118-93J00 Shift Cam Plug 1 $ 5.73
2-1 25110-98L00 Shift Rod (X) 1 $ 184.06
w/Transom (X)
2-2 25110-98L10 Shift Rod (XX) 1 $ 241.71
w/Transom (XX)
3 25300-98L00 Shift Cam 1 $ 333.99
4 25315-98L00 Shift Cam Arm Link 1 $ 17.29
5 25411-98L00 Shift Fork 1 $ 200.50
6 09160-06094 Washer (6.5x15x1.0) 2 $ 1.44
7 09160-08082 Washer (8.5x16x1.2) 2 $ 1.63
8 09160-10035 Washer 1 $ 1.78
9 09202-08007 Pin (8x49) 1 $ 4.47
10 09204-01006 Cotter Pin 2 $ 1.40
11 25214-98L00 Shift Link Bushing 2 $ 6.08
12 09440-05031 Spring 1 $ 1.44
13 06111-07004 STEEL BALL 7/32 1 $ 1.24
14 08113-60020 B1 15X32X09 BEA 1 $ 16.29
15 08113-62000 B1 10X30X09 BEA 1 $ 11.80
16 08113-69047 BEARING 2 $ 26.46

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
