Suzuki DF 350A Parts Listings - 2019
S/N 35001F-910001 to 35001F-91XXXX

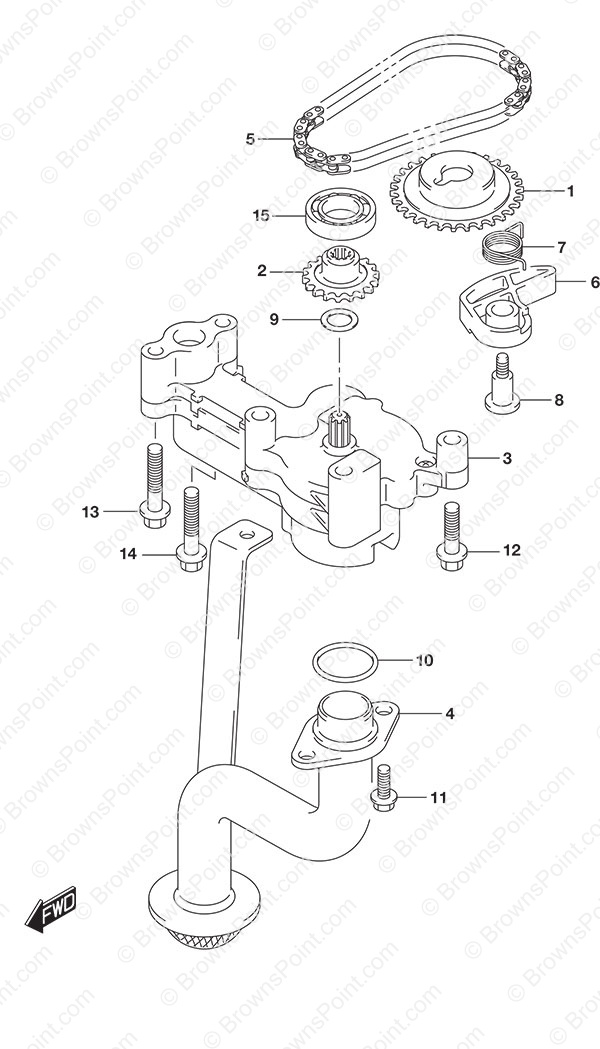

Fig. 175 - Oil Pump

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 12632-93J11 Oil Pump Drive Sprocket 1 $ 57.66
2 16113-93J10 Oil Pump Driven Sprocket 1 $ 32.71
3 16400-93J20 Oil Pump Assembly 1 $ 171.49
4 16520-93J00 Oil Pump Strainer 1 $ 44.63
5 16760-93J00 Oil Pump Chain 1 $ 40.72
6 16781-93J00 Oil Pump Chain Tensioner 1 $ 22.12
7 16782-93J00 Oil Pump Tensioner Spring 1 $ 8.02
8 16783-93J01 Oil Pump Tensioner Bolt 1 $ 5.79
9 09181-12158 Washer (12x20x0.5) 1 $ 2.27
10 09280-22020 O-Ring 2 $ 3.39
11 01550-0616A BOLT 3 $ 1.97
12 01550-0845A BOLT 1 $ 3.19
13 01550-0865A BOLT 3 $ 3.56
14 01550-0885A BOLT 1 $ 3.61
15 08110-60020 B1 15X32X9 BEAR 1 $ 16.29

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
