Suzuki DF 115A Parts Listings - 2020
S/N 11503F-040001 to 11503F-04XXXX
S/N 11503Z-040001 to 11503Z-04XXXX

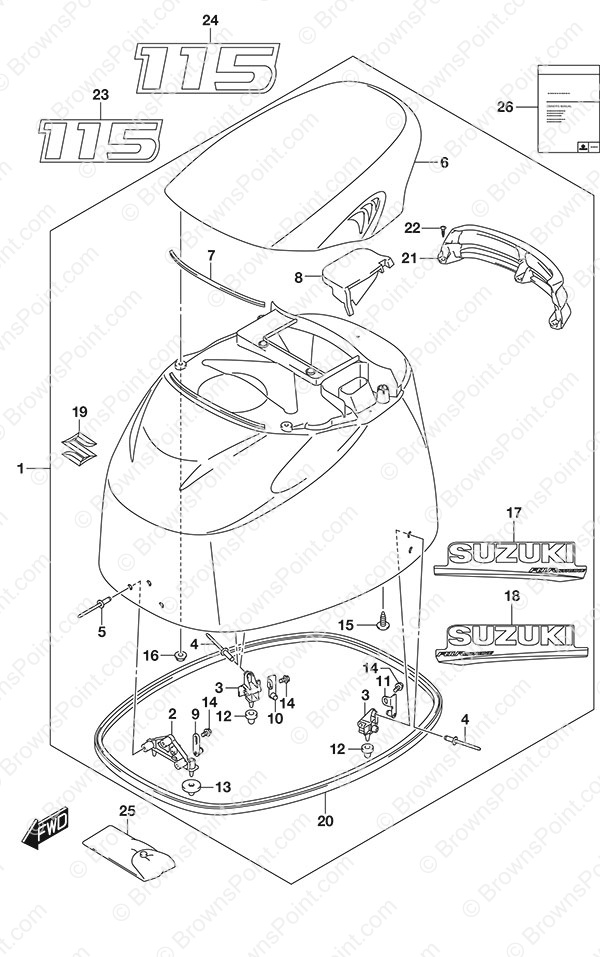

Fig. 420B - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61401-90811-YAY Engine Cover Set
SKU: 61401-90811-YAY Weight: 50.000000 Brand: Price: $ 1,300.37 |
Engine Cover Set | 1 | $ 1,300.37 | Black | |
| 1-2 | 61401-90821-Y5S Engine Cover Set
SKU: 61401-90821-Y5S Weight: 50.000000 Brand: Price: $ 1,294.67 |
Engine Cover Set | 1 | $ 1,294.67 | White | |
| 2 | 61621-87D20 Front Fastener Bracket
SKU: 61621-87D20 Weight: 0.250000 Brand: Price: $ 17.63 |
Front Fastener Bracket | 1 | $ 17.63 | ||
| 3 | 61644-90J20 Rear Fastener Bracket
SKU: 61644-90J20 Weight: 0.250000 Brand: Price: $ 20.98 |
Rear Fastener Bracket | 2 | $ 20.98 | ||
| 4 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.97 |
Rivet | 4 | $ 2.97 | ||
| 5 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.97 |
Rivet | 3 | $ 2.97 | ||
| 6-1 | 61430-92J00-YAY Tilt Up Handle
SKU: 61430-92J00-YAY Weight: 5.000000 Brand: Price: $ 168.56 |
Tilt Up Handle | 1 | $ 168.56 | Black | |
| 6-2 | 61430-92J00-Y5S Tilt Up Handle
SKU: 61430-92J00-Y5S Weight: 5.000000 Brand: Price: $ 171.79 |
Tilt Up Handle | 1 | $ 171.79 | White | |
| 7 | 61438-92J11 Tilt Up Handle Seal
SKU: 61438-92J11 Weight: 0.250000 Brand: Price: $ 6.63 |
Tilt Up Handle Seal | 1 | $ 6.63 | ||
| 8 | 61439-92J10 Tilt Up Handle Seal
SKU: 61439-92J10 Weight: 0.250000 Brand: Price: $ 3.14 |
Tilt Up Handle Seal | 1 | $ 3.14 | ||
| 9 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.67 |
FASTENER COMP | 1 | $ 12.67 | ||
| 10 | 61680-90J01 Starboard Rear Fastener
SKU: 61680-90J01 Weight: 0.080000 Brand: Price: $ 18.03 |
Starboard Rear Fastener | 1 | $ 18.03 | ||
| 11 | 61690-90J01 Port Rear Fastener
SKU: 61690-90J01 Weight: 0.080000 Brand: Price: $ 18.03 |
Port Rear Fastener | 1 | $ 18.03 | ||
| 12 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.27 |
Cushion | 2 | $ 4.27 | ||
| 13 | 09329-10025 Cushion
SKU: 09329-10025 Weight: 0.060000 Brand: Price: $ 3.50 |
Cushion | 2 | $ 3.50 | ||
| 14 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 3 | $ 2.45 | ||
| 15 | 07120-06167 BOLT
SKU: 07120-06167 Weight: 0.100000 Brand: Price: $ 3.38 |
BOLT | 2 | $ 3.38 | ||
| 16 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.37 |
Nut | 2 | $ 2.37 | ||
| 17-1 | 61443-88L20 Starboard Engine Cover Stripe
SKU: 61443-88L20 Weight: 0.100000 Brand: Price: $ 18.91 |
Starboard Engine Cover Stripe | 1 | $ 18.91 | For Black | |
| 17-2 | 61443-88L30 Starboard Engine Cover Stripe
SKU: 61443-88L30 Weight: 0.250000 Brand: Price: $ 27.41 |
Starboard Engine Cover Stripe | 1 | $ 27.41 | For White | |
| 18-1 | 61453-88L20 Port Engine Cover Stripe
SKU: 61453-88L20 Weight: 0.250000 Brand: Price: $ 18.91 |
Port Engine Cover Stripe | 1 | $ 18.91 | For Black | |
| 18-2 | 61453-88L30 Port Engine Cover Stripe
SKU: 61453-88L30 Weight: 0.250000 Brand: Price: $ 27.41 |
Port Engine Cover Stripe | 1 | $ 27.41 | For White | |
| 19 | 77811-63J00-0PG Chrome S Emblem
SKU: 77811-63J00-0PG Weight: 0.200000 Brand: Price: $ 19.14 |
Chrome S Emblem | 1 | $ 19.14 | ||
| 20 | 61112-92J10 Side Cover Rubber
SKU: 61112-92J10 Weight: 1.000000 Brand: Price: $ 85.41 |
Side Cover Rubber | 1 | $ 85.41 | ||
| 21 | 61432-92J10 Tilt Up Louver
SKU: 61432-92J10 Weight: 1.000000 Brand: Price: $ 51.87 |
Tilt Up Louver | 1 | $ 51.87 | ||
| 22 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.23 |
SCREW | 3 | $ 2.23 | ||
| 23-1 | 61422-90J50 Front Emblem Mark (115)
SKU: 61422-90J50 Weight: 0.200000 Brand: Price: $ 11.25 |
Front Emblem Mark (115) | 1 | $ 11.25 | For Black | |
| 23-2 | 61422-90J60 Front Emblem Mark (115)
SKU: 61422-90J60 Weight: 0.200000 Brand: Price: $ 11.25 |
Front Emblem Mark (115) | 1 | $ 11.25 | For White | |
| 24-1 | 61435-90JB0 Rear Emblem Mark (115)
SKU: 61435-90JB0 Weight: 0.200000 Brand: Price: $ 14.06 |
Rear Emblem Mark (115) | 1 | $ 14.06 | For Black | |
| 24-3 | 61435-90JC0 Rear Emblem Mark (115)
SKU: 61435-90JC0 Weight: 0.200000 Brand: Price: $ 14.06 |
Rear Emblem Mark (115) | 1 | $ 14.06 | For White | |
| 25 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 29.52 |
Tool Set | 1 | $ 29.52 | ||
| 27 | 99011-90JA0-03B Owners Manual DF115A/140A - 2020
SKU: 99011-90JA0-03B Weight: 0.250000 Brand: Price: $ 17.49 |
Owners Manual DF115A/140A - 2020 | 1 | $ 17.49 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
