Suzuki DF 115A Parts Listings - 2018
S/N 11503F-810001 to 11503F-81XXXX
S/N 11503Z-810001 to 11503Z-81XXXX

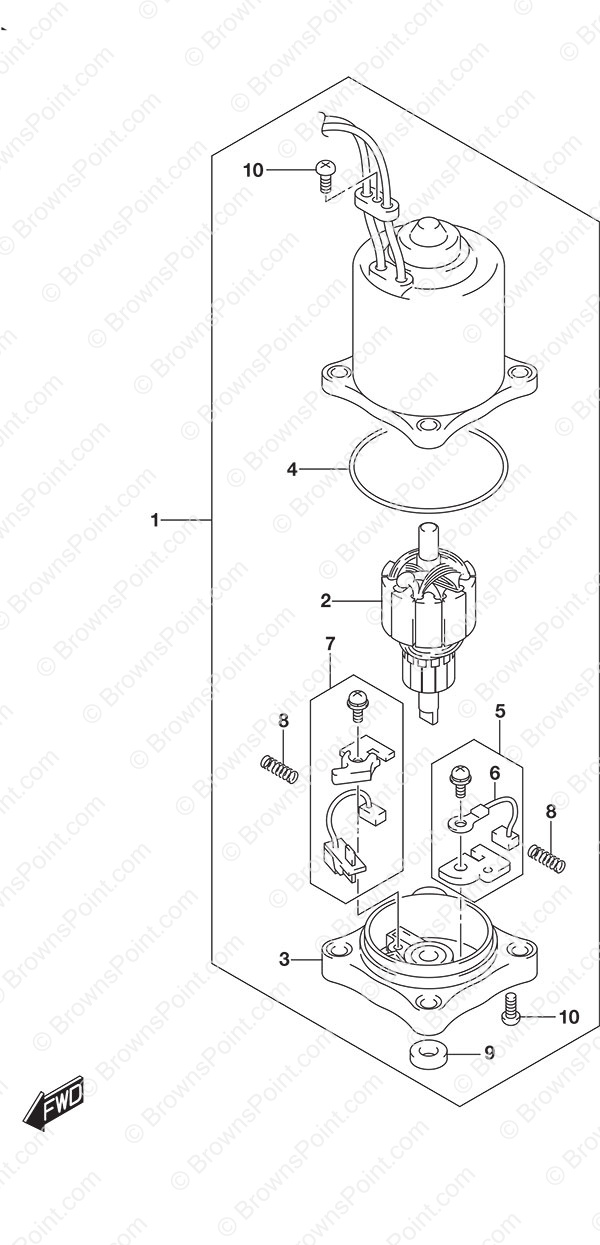

Fig. 340A - PTT Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-92J14 MOTOR ASSY,PTT
SKU: 38100-92J14 Weight: 0.000000 Brand: Price: $ 504.25 |
MOTOR ASSY,PTT | 1 | $ 504.25 | ||
| 2 | 31311-94900 Armature (NLA)
SKU: 31311-94900 Weight: 5.000000 Brand: Price: $ 322.40 |
Armature (NLA) | 1 | $ 322.40 | ||
| 3 | 59171-93L10 Shim (3.55)
SKU: 59171-93L10 Weight: 0.125000 Brand: Price: $ 144.61 |
Shim (3.55) | 1 | $ 144.61 | ||
| 4 | 31123-94910 O-Ring
SKU: 31123-94910 Weight: 0.060000 Brand: Price: $ 15.23 |
O-Ring | 1 | $ 15.23 | ||
| 5 | 31133-90J20 Brush Assembly
SKU: 31133-90J20 Weight: 0.000000 Brand: Price: $ 9.99 |
Brush Assembly | 1 | $ 9.99 | ||
| 6 | 31133-94910 Brush
SKU: 31133-94910 Weight: 0.060000 Brand: Price: $ 13.00 |
Brush | 1 | $ 13.00 | ||
| 7 | 12778-98L00 Guide Base Gasket
SKU: 12778-98L00 Weight: 0.125000 Brand: Price: $ 12.67 |
Guide Base Gasket | 1 | $ 12.67 | ||
| 8 | 31135-94900 Spring
SKU: 31135-94900 Weight: 0.060000 Brand: Price: $ 5.20 |
Spring | 2 | $ 5.20 | ||
| 9 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 24.08 |
Oil Seal | 1 | $ 24.08 | ||
| 10 | 31111-94900 Yoke Screw
SKU: 31111-94900 Weight: 0.060000 Brand: Price: $ 4.54 |
Yoke Screw | 2 | $ 4.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
