Suzuki DF 115A Parts Listings - 2018
S/N 11503F-810001 to 11503F-81XXXX
S/N 11503Z-810001 to 11503Z-81XXXX
S/N 11504F-810001 to 11504F-81XXXX

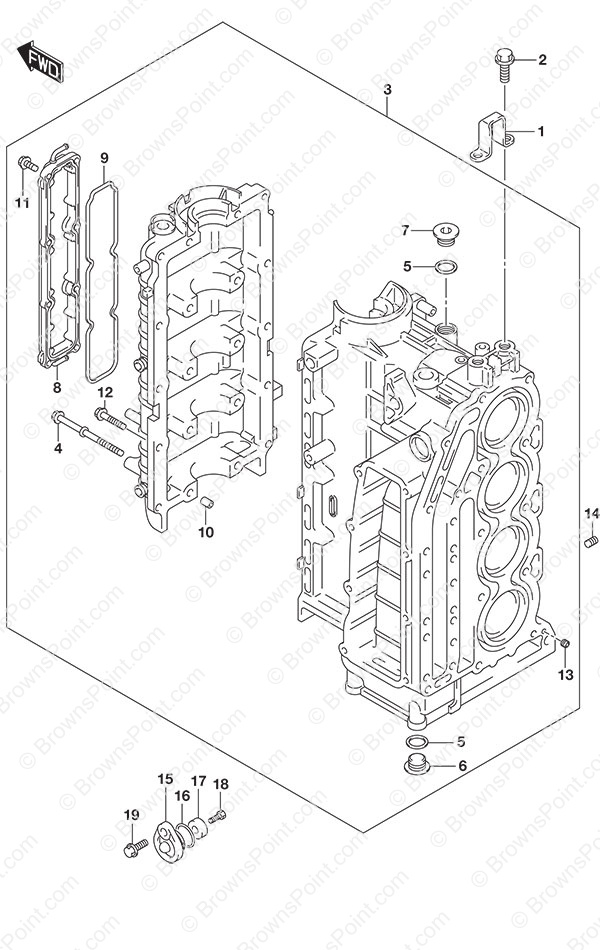

Fig. 113 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11291-90J10 Engine Hook
SKU: 11291-90J10 Weight: 0.100000 Brand: Price: $ 13.77 |
Engine Hook | 1 | $ 13.77 | ||
| 2 | 01550-1230C BOLT,ENGINE HOO
SKU: 01550-1230C Weight: 0.125000 Brand: Price: $ 3.85 |
BOLT,ENGINE HOO | 2 | $ 3.85 | ||
| 3 | 11300-92J40 Cylinder Block Assembly
SKU: 11300-92J40 Weight: 50.000000 Brand: Price: $ 3,470.27 |
Cylinder Block Assembly | 1 | $ 3,470.27 | ||
| 4 | 11117-90J10 Crankcase Bolt
SKU: 11117-90J10 Weight: 0.250000 Brand: Price: $ 7.01 |
Crankcase Bolt | 10 | $ 7.01 | ||
| 5 | 11216-77E00 Oil Gallery Plug Gasket
SKU: 11216-77E00 Weight: 0.060000 Brand: Price: $ 3.54 |
Oil Gallery Plug Gasket | 3 | $ 3.54 | ||
| 6 | 09248-18011 Oil Gallery Plug
SKU: 09248-18011 Weight: 0.060000 Brand: Price: $ 7.35 |
Oil Gallery Plug | 2 | $ 7.35 | ||
| 7 | 09248-18014 Plug (18x8)
SKU: 09248-18014 Weight: 0.200000 Brand: Price: $ 6.47 |
Plug (18x8) | 1 | $ 6.47 | ||
| 8 | 11330-90J00 Crankcase Cover
SKU: 11330-90J00 Weight: 0.500000 Brand: Price: $ 175.43 |
Crankcase Cover | 1 | $ 175.43 | ||
| 9 | 11332-90J00 Crankcase O-Ring
SKU: 11332-90J00 Weight: 0.060000 Brand: Price: $ 11.73 |
Crankcase O-Ring | 1 | $ 11.73 | ||
| 10 | 09206-13019 Knock Pin
SKU: 09206-13019 Weight: 0.062500 Brand: Price: $ 2.93 |
Knock Pin | 5 | $ 2.93 | ||
| 11 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.70 |
BOLT | 8 | $ 2.70 | ||
| 12 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 4.02 |
BOLT 8 X 40 | 10 | $ 4.02 | ||
| 13 | 11112-90J00 Oil Venturi Plug
SKU: 11112-90J00 Weight: 0.060000 Brand: Price: $ 5.24 |
Oil Venturi Plug | 1 | $ 5.24 | ||
| 14 | 09246-04009 Plug
SKU: 09246-04009 Weight: 0.060000 Brand: Price: $ 4.25 |
Plug | 1 | $ 4.25 | ||
| 15 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 18.11 |
Protection Anode Cover | 1 | $ 18.11 | ||
| 16 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.75 |
O-Ring | 1 | $ 2.75 | ||
| 17 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.63 |
Aluminum Anode | 1 | $ 7.63 | ||
| 18 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 3.47 |
Bolt (6x14) | 1 | $ 3.47 | ||
| 19 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 3.17 |
BOLT | 1 | $ 3.17 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
