Suzuki DF 40 Parts Listings - 2008
S/N 04001F-880001 to 04001F-88XXXX

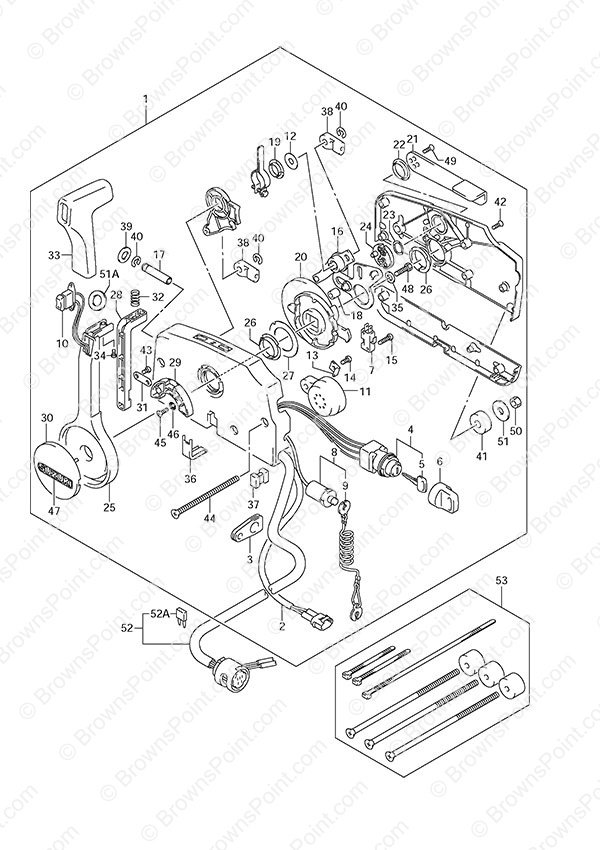

Fig. 65 - Opt: Remote Control

Ref# Part Number Description Req Qty* Price Each Order Remarks
2 36646-93J00 PTT Switch Adapter Wire Asembly 1 $ 64.02
3 36628-92E00 Wire Harness Grommet 1 $ 5.90
4 37110-93J02 Ignition Switch Assembly 1 $ 96.87
5-1 37141-99E00 (931) Ignition Key 1 $ 15.38
5-2 37141-99E10 (932) Ignition Key 1 $ 15.38
5-3 37141-99E20 (933) Ignition Key 1 $ 15.38
5-4 37141-99E30 (934) Ignition Key 1 $ 15.38
5-5 37141-99E40 (935) Ignition Key 1 $ 15.38
5-6 37141-99E50 (936) Ignition Key 1 $ 15.38
5-7 37141-99E60 (937) Ignition Key 1 $ 15.38
5-8 37141-99E70 (938) Ignition Key 1 $ 15.38
5-9 37141-99E80 (939) Ignition Key 1 $ 15.38
5-10 37141-99E90 (940) Ignition Key 1 $ 15.38
5-11 37141-99EA0 (941) Ignition Key 1 $ 15.38
5-12 37141-99EB0 (942) Ignition Key 1 $ 15.38
6 37143-99E01 Key Cap 1 $ 6.09
7 37721-93J91 Neutral Switch Assembly 1 $ 44.17
8 37820-93J05 Emergency Stop Switch Assembly 1 $ 41.72
9 37823-92E02 Stop Switch Lanyard 1 $ 19.68
10 37850-90J06 PTT Switch Assembly 1 $ 86.50
11 38500-93J90 Warning Buzzer 1 $ 39.28
12 67212-95600 Washer (NLA) 1 $ 2.03

Not Available

13 67213-92E00 Buzzer Bracket (NLA) 1 $ 3.69

Not Available

14 09125-05042 Screw (5x10) 1 $ 1.99
15 67296-92E11 Screw (3x15) 2 $ 3.01
16 67220-95630 Plate Assembly 1 $ 96.86
17 67223-99E10 Brake Adjustment Knob 1 $ 9.12
18 67229-95600 Roller (NLA) 1 $ 3.82

Not Available

19 67232-95600 Bushing 1 $ 6.50
20 67238-87D00 Drive Gear 1 $ 48.50
21 67241-99E10 Free Throttle Lever (NLA) 1 $ 15.56

Not Available

22 67243-95600 Bushing (NLA) 1 $ 3.16

Not Available

23 67244-95600 Wave Washer (NLA) 1 $ 2.19

Not Available

24 67245-95600 Free Throttle Drum (NLA) 1 $ 14.51

Not Available

25 67251-99E10 Handle Lever 1 $ 57.62
26 67252-95600 Bushing 2 $ 5.10
27 67253-95600 Washer (NLA) 1 $ 2.64

Not Available

28 67255-99E00 Neutral Lock Arm 1 $ 13.57
29 67256-95600 Neutral Lock Holder 1 $ 10.73
30 67257-99E00 Lever Cap 1 $ 7.46
31 67258-99E00 Neutral Arm Bracket 1 $ 5.38
32 67259-87D00 Neutral Arm Spring (NLA) 1 $ 4.38
33 67261-99E00 Grip 1 $ 33.95
34 67296-94310 Screw 1 $ 1.85
35 67264-95600 Washer (NLA) 1 $ 2.10

Not Available

36 67267-95610 Wire Cover (Black) 1 $ 6.14
37 67273-95600 Spacer 1 $ 3.88
38 67275-95600 Cable End 2 $ 8.02
39 67288-92E00 Washer 1 $ 2.88
40 67292-94300 E Ring 3 $ 1.22
41 67294-95600 Spacer 3 $ 4.67
42 67296-90J10 Rear Cover Screw 5 $ 2.92
43 67296-94300 Screw (4x10) 2 $ 1.31
44 67296-95600 Screw 3 $ 5.83
45 67296-95610 Screw 2 $ 2.85
46 67297-95600 Washer 2 $ 2.96
47 68165-16B01-13L Suzuki Emblem 1 $ 4.80
48 09100-08232 Bolt (8x30) 1 $ 3.57
49 09126-05003 Screw (5x12) 2 $ 2.06
50 09140-06020 Nut (6mm) 3 $ 1.82
51 09160-06104 Washer (6.5x24x2) 3 $ 2.64

Not Available

51A 37859-90J00 Spacer 1 $ 3.74
52-1 36620-93J04 21' Main Wiring Harness 1 $ 253.58
L:5000
52-2 36620-93J54 16' Main Wiring Harness 1 $ 236.20
L:3500
52-3 36620-93J64 26' Main Wiring Harness 1 $ 346.78
L:6500
52A 09481-10501 10 Amp Fuse 1 $ 2.06
53 67140-95600 Replaced by 67140-95601 1 $ 35.78

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
