Suzuki DF 40 Parts Listings - 2005
S/N 04001F-510001 to 04001F-51XXXX

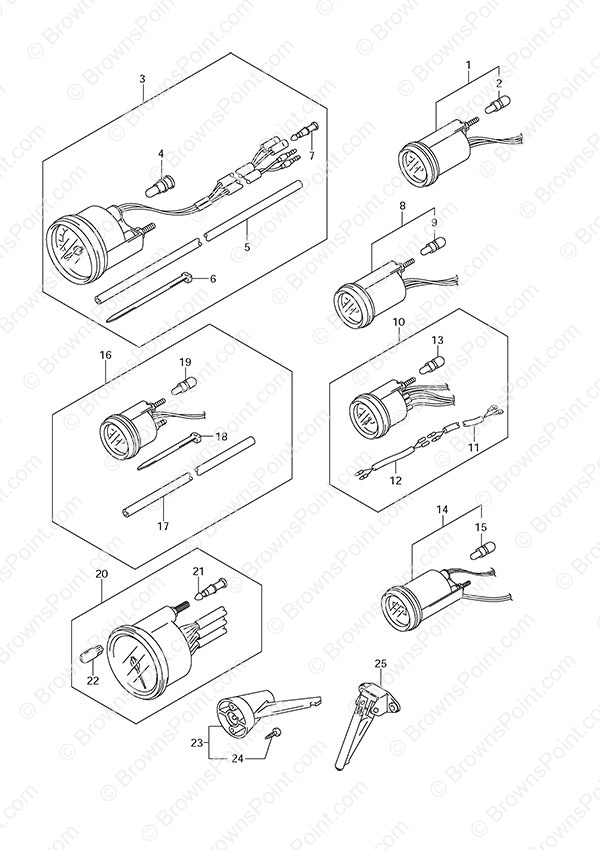

Fig. 55 - Opt: Meter

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 34800-93J02 Black Trim Gauge 1 $ 101.46
1-2 34800-93J13 White Trim Gauge 1 $ 105.52
2 09471-12103 Bulb (12v, 3.4w) 1 $ 3.90
3-1 34100-93J00 Black Speedometer 0-80 MPH 1 $ 156.43
3-2 34100-93J13 White Speedometer 0-80 MPH 1 $ 184.74
3-3 34100-93J22 Black Speedometer 0-50 MPH 1 $ 184.74
3-4 34100-93J33 White Speedometer 0-50 MPH 1 $ 184.74
4 09471-12028 Bulb (12v, 3.4w) 1 $ 1.99
5 34191-92E00 Water Pressure Tubing 1 $ 33.64
6 09407-14407 Clamp (L:140) 2 $ 3.09
7 36615-96300 Resin Terminal 2 $ 1.31
8-1 34600-93J02 Black Voltmeter 1 $ 115.67
8-2 34600-93J13 White Voltmeter 1 $ 115.67
9 09471-12103 Bulb (12v, 3.4w) 1 $ 3.90
10-1 34300-93J02 Black Fuel Gauge 1 $ 173.44
10-2 34300-93J13 White Fuel Gauge 1 $ 173.44
11 34310-92E00 Fuel Gauge Lead (NLA) 1 $ 41.14

Not Available

12 34360-92E00 Adapter Harness (NLA) 1 $ 31.27

Not Available

13 09471-12103 Bulb (12v, 3.4w) 1 $ 3.90
14-1 34500-93J02 Black Hour Meter 1 $ 164.43
14-2 34500-93J13 White Hour Meter 1 $ 164.43
15 09471-12103 Bulb (12v, 3.4w) 1 $ 3.90
16-1 34650-93J20 Black Water Pressure Gauge* 1 $ 166.77

Not Available

15 psi
16-2 34650-93J33 White Water Pressure Gauge 1 $ 178.64
15 psi
17 34191-92E00 Water Pressure Tubing 1 $ 33.64
18 09407-14407 Clamp (L:140) 2 $ 3.09
19 09471-12103 Bulb (12v, 3.4w) 1 $ 3.90
20-1 34200-93J02 Black Tachometer w/Monitor Function 1 $ 209.11
20-2 34200-93J14 Tachometer w/Monitor - White 1 $ 205.39
21 36615-96300 Resin Terminal 4 $ 1.31
22 09471-12077 Bulb (12v, 1.7w) 1 $ 3.61
23 34190-95500 Speedometer Sensor (NLA) 1 $ 42.08

Not Available

24 03112-06303 Screw (NLA) 2 $ 2.20
25 34190-87D00 Speedometer Sensor 1 $ 44.58

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
