Suzuki DF 40 Parts Listings - 2005
S/N 04001F-510001 to 04001F-51XXXX

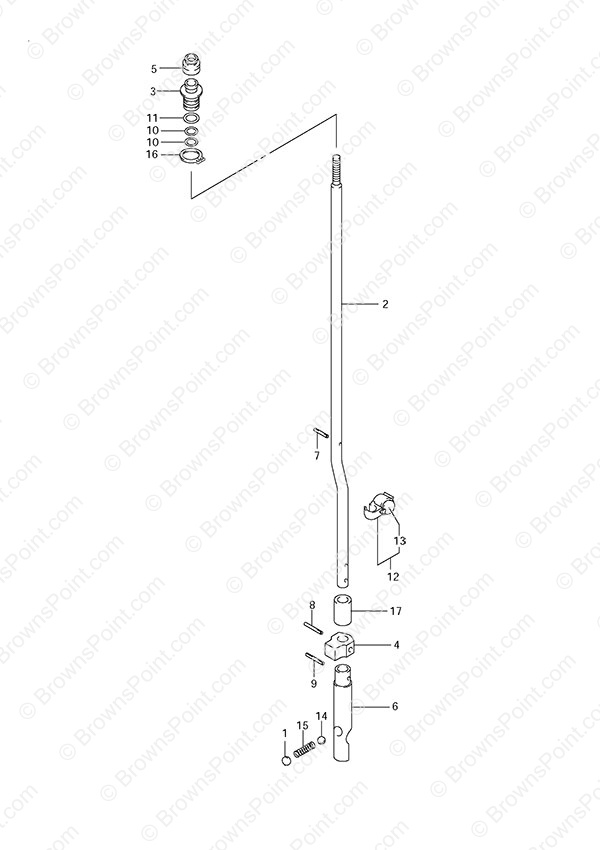

Fig. 21 - Shift Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21121-93300 Clutch Notch Plate
SKU: 21121-93300 Weight: 0.060000 Brand: Price: $ 1.51 |
Clutch Notch Plate | 1 | $ 1.51 | ||
| 2-1 | 25111-94412 Shift Rod (S) (NLA)
SKU: 25111-94412 Weight: 0.100000 Brand: Price: $ 13.54 |
Shift Rod (S) (NLA) | 1 | $ 13.54 | w/Transom (S) | |
| 2-2 | 25111-94442 Shift Rod (L)
SKU: 25111-94442 Weight: 0.300000 Brand: Price: $ 31.01 |
Shift Rod (L) | 1 | $ 31.01 | w/Transom (L) | |
| 3 | 25211-87J00 Shift Rod Guide
SKU: 25211-87J00 Weight: 0.100000 Brand: Price: $ 13.21 |
Shift Rod Guide | 1 | $ 13.21 | ||
| 4 | 25212-94401 Shift Rod Lower Guide
SKU: 25212-94401 Weight: 0.060000 Brand: Price: $ 3.72 |
Shift Rod Lower Guide | 1 | $ 3.72 | ||
| 5 | 25223-96J00 Seal, Shift Rod Dust
SKU: 25223-96J00 Weight: 0.060000 Brand: Price: $ 5.75 |
Seal, Shift Rod Dust | 1 | $ 5.75 | ||
| 6 | 25311-94402 Shift Cam
SKU: 25311-94402 Weight: 0.250000 Brand: Price: $ 57.44 |
Shift Cam | 1 | $ 57.44 | ||
| 7 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.95 |
Spring Pin (2.5x12) | 1 | $ 0.95 | ||
| 8 | 09205-02013 Spring Pin (2.5x16)
SKU: 09205-02013 Weight: 0.060000 Brand: Price: $ 1.18 |
Spring Pin (2.5x16) | 1 | $ 1.18 | ||
| 9 | 09205-03021 Spring Pin (3.5x12)
SKU: 09205-03021 Weight: 0.060000 Brand: Price: $ 1.10 |
Spring Pin (3.5x12) | 1 | $ 1.10 | ||
| 10 | 09280-08005 O-Ring
SKU: 09280-08005 Weight: 0.060000 Brand: Price: $ 1.88 |
O-Ring | 1 | $ 1.88 | ||
| 11 | 09280-11005 Shift Rod O-Ring
SKU: 09280-11005 Weight: 0.060000 Brand: Price: $ 4.67 |
Shift Rod O-Ring | 1 | $ 4.67 | ||
| 14 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.92 |
Ball | 1 | $ 1.92 | ||
| 15 | 09440-07071 Spring
SKU: 09440-07071 Weight: 0.060000 Brand: Price: $ 5.82 |
Spring | 1 | $ 5.82 | ||
| 16 | 08331-3115A Circlip
SKU: 08331-3115A Weight: 0.060000 Brand: Price: $ 2.05 |
Circlip | 1 | $ 2.05 | ||
| 17 | 25232-96302 Gear Case Magnet
SKU: 25232-96302 Weight: 0.060000 Brand: Price: $ 6.03 |
Gear Case Magnet | 1 | $ 6.03 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
