Suzuki DF 40 Parts Listings - 1999
S/N 04001F-971001 to 04001F-97XXXX

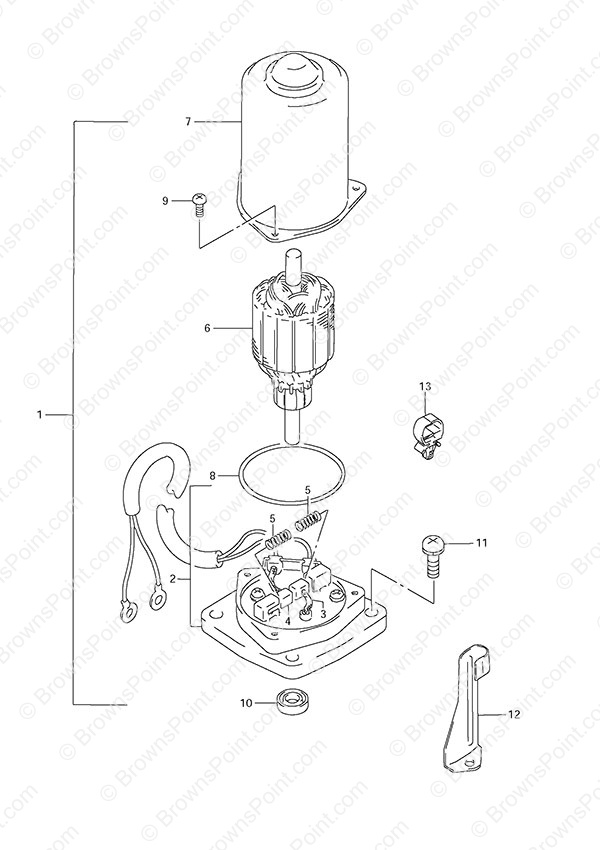

Fig. 43 - PTT Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-87J00-0EP PTT Motor Assembly
SKU: 38100-87J00-0EP Weight: 5.000000 Brand: Price: $ 812.09 |
PTT Motor Assembly | 1 | $ 812.09 | ||
| 2 | 31173-87J00 Brush Holder Assy
SKU: 31173-87J00 Weight: 0.100000 Brand: Price: $ 456.75 |
Brush Holder Assy | 1 | $ 456.75 | ||
| 3 | 31133-97E00 Brush
SKU: 31133-97E00 Weight: 0.060000 Brand: Price: $ 15.30 |
Brush | 1 | $ 15.30 | ||
| 4 | 31136-87J00 Breaker
SKU: 31136-87J00 Weight: 0.060000 Brand: Price: $ 76.81 |
Breaker | 1 | $ 76.81 | ||
| 5 | 31135-97E00 Spring
SKU: 31135-97E00 Weight: 0.060000 Brand: Price: $ 4.80 |
Spring | 2 | $ 4.80 | ||
| 6 | 31311-87J00 Armature (NLA)
SKU: 31311-87J00 Weight: 5.000000 Brand: Price: $ 299.43 |
Armature (NLA) | 1 | $ 299.43 | ||
| 7 | 31110-97E00-0EP Yoke Assembly (NLA)
SKU: 31110-97E00-0EP Weight: 1.000000 Brand: Price: $ 243.01 |
Yoke Assembly (NLA) | 1 | $ 243.01 | ||
| 8 | 31123-97E10 O-Ring
SKU: 31123-97E10 Weight: 0.060000 Brand: Price: $ 15.43 |
O-Ring | 1 | $ 15.43 | ||
| 9 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 2.08 |
Screw (5x20) | 3 | $ 2.08 | ||
| 10 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 24.08 |
Oil Seal | 1 | $ 24.08 | ||
| 11 | 48862-97E00 Motor Screw
SKU: 48862-97E00 Weight: 0.060000 Brand: Price: $ 11.40 |
Motor Screw | 4 | $ 11.40 | ||
| 12 | 38111-97E00 PTT Cable Holder (NLA)
SKU: 38111-97E00 Weight: 0.100000 Brand: Price: $ 12.29 |
PTT Cable Holder (NLA) | 1 | $ 12.29 | ||
| 13 | 09403-14315 Clamp (NLA)
SKU: 09403-14315 Weight: 0.100000 Brand: Price: $ 1.57 |
Clamp (NLA) | 1 | $ 1.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
